When building fiber optic networks, you need to choose the right connector. LC connectors are smaller and pack more ports into tight spaces—they’re best for modern, high-density setups. SC connectors are larger, easier to handle, and more durable—they work well for older systems or installations where space isn’t tight.
This article compares LC and SC connectors across size, durability, performance, and cost. You’ll learn which one fits your network needs and how to choose between them.
Overview Of Fiber Optic Connectors
In the ecosystem of optical fiber connectors, the SC and LC connectors are two of the most widely used types for creating reliable connections. Your choice directly impacts rack space efficiency, installation ease, and system scalability.
What are SC Connectors?
SC (Subscriber Connector) uses a square, snap-in housing with a push-pull latching mechanism that secures the ferrule in the adapter. It provides a secure connection with a 2.5mm ceramic ferrule.
Key Features & Uses:
- Design: A square connector with a simple, robust push-pull latch.
- Durability and Ease of Use: Its larger size makes it easy to handle, even with gloves, favoring durability.
- Typical Applications: Widely used in telecommunications backhauls, CATV systems, campus networks, and legacy patch panels where maximum port density is not the primary concern.
SC comes in single-mode and multimode versions, in simplex or duplex formats. They’re cost-effective, simple to clean, and widely available, making them practical when density isn’t the main concern.
What are LC Connectors?
The LC (Lucent Connector), developed by Lucent Technologies, revolutionized density with its compact design. It uses a 1.25mm ceramic ferrule and an RJ45-style latch, making it about half the size of SC.
Key Features & Uses:
- Design: Small form factor inspired by the RJ45 plug, enabling high-density applications.
- The Density Advantage: The smaller size of LC connectors allows for doubling the number of fiber connections in the same panel space compared to SC.
- Typical Applications: The dominant choice for modern data center switches (SFP/SFP+), high-density patch panels, and any environment where saving rack space is critical.

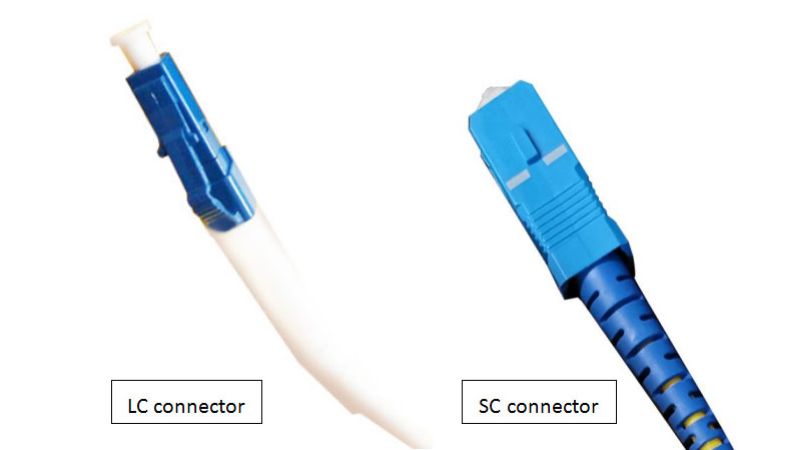

LC vs SC Fiber Connectors: Key Differences
Size and Density: The Battle For Rack Space
The most striking difference is form factor. The LC connector’s 1.25mm ferrule makes it roughly half the size of the SC connector with its 2.5mm ferrule. This smaller size of LC connectors allows you to fit far more ports in a 1U rack space, making it the undisputed king for high-density applications.
Latch Mechanism: Push-Pull Vs. Latch-and-Click
- SC: Employs a simple, robust push-pull mechanism. It’s intuitive and offers excellent durability.
- LC: Features a latch that resembles an RJ45 Ethernet plug. It provides a secure connection in tight spaces but requires a more deliberate action to engage and disengage.
Performance: Is There a Difference In Insertion Loss?
For data transmission over single-mode fiber or multimode, there is no inherent performance winner. Both types, when equipped with quality ceramic ferrules and proper polish, achieve comparable low insertion loss (typically 0.1-0.3 dB). The performance in fiber optic systems depends more on installation quality and end-face cleanliness than on the connector type itself.
Cost and Installation Considerations
While SC connectors are generally less expensive per unit, the total cost picture is nuanced. LC’s space-saving benefit can reduce overall hardware and rack costs in dense setups. Installation of LC connectors requires more precision due to their small size, but pre-terminated options mitigate this for most fiber optic connections.
LC and SC Connectors: Which One Should You Choose?
Choose based on port density, space constraints, equipment compatibility, and field conditions. Consider how many fibers you must terminate, if rack space is tight, and whether technicians need quick, rugged connections.
Choosing LC For High-Density Environments
Choose LC when port density is paramount. Its compact design is essential for data center rack servers, modular patch panels, and equipment using SFP/SFP+/QSFP transceivers. It’s the standard for modern, scalable fiber optic networks.
Choosing SC For Ruggedness And Simplicity
Choose SC when you prioritize durability and ease of use over maximum density. It’s perfect for enterprise telecom closets, Fiber-to-the-Home (FTTH) terminals, industrial settings, and connecting to legacy infrastructure where its reliable connection and simple push-pull action are valued.
Additional Considerations For Security Professionals
Prioritize connector choice based on how it affects access control, tamper resistance, and monitoring in rack and conduit environments. Consider how connector mechanics and panel layout influence physical security and event auditing.
Physical Security: Snap-In Vs. Push-Pull In Secure Areas
Both types can be secured. Consider using keyed versions of LC or SC connectors to prevent unauthorized mating. The larger SC connector housing can be easier to physically lock or seal. Implement tamper-evident tags on patch cords and keep unused ports sealed with blanks.
- Inspect connector housings for aftermarket modifications.
- Use color coding and numbered labels to reduce accidental swaps.
- Verify bend-radius protectors remain intact after any lock installation.
Monitoring and Auditing Connections In High-Density Panels
High-density LC panels increase port counts and complicate visual auditing; plan for electronic and physical monitoring. Deploy port-level patch monitoring (fiber continuity or light-level sensors) to detect unexpected changes in link state. Combine that with scheduled physical audits where you inspect tamper tags, connector cleanliness, and label integrity.
Log all physical access events and correlate them with network alarms. Use a simple audit checklist: port ID, connector type (LC/SC), pre/post insertion power levels, and photo evidence when you change patches. For dense racks, consider using angled adapter panels and labeled cable guides to maintain consistent routing so you can spot irregularities quickly.
Conclusion
Choose LC connectors when space is limited. They fit more ports in patch panels and devices, making them ideal for modern data centers and telecom closets. SC connectors are best when you want simple, sturdy connections. Their larger size and easy push-pull design are suited for lower-density runs and older equipment.
For optimal performance in all fiber optic connections: Always use high-quality components, maintain impeccable cleanliness, and label everything clearly. Choosing the right connector is the first step to building a reliable and scalable network.

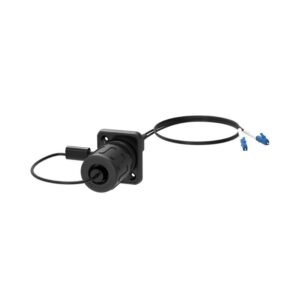

Need High-Density LC Connectors?
