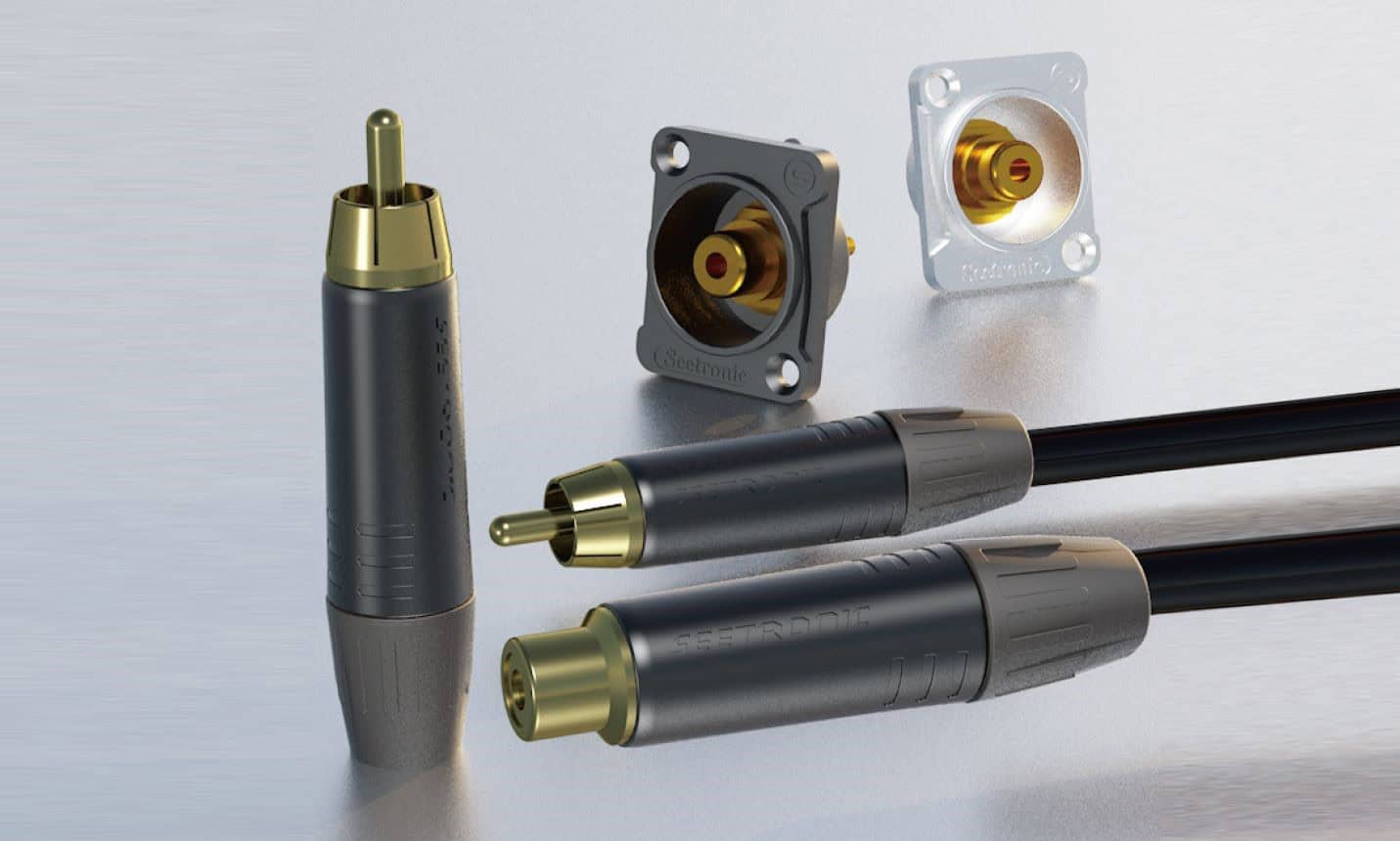

RCA connectors, also known as phono connectors, transmit analog audio and video signals between devices. From vintage hi-fi systems to modern subwoofers, these simple plugs have persisted through decades of evolving media formats.
In this guide, we’ll explore every aspect of RCA connectors: the different types, step-by-step hookup instructions, common pitfalls, and how they stack up against HDMI.
What Are the Different Types of RCA Connectors?
RCA connectors serve different purposes depending on whether they carry audio or video signals. Audio connectors handle stereo sound, mono signals, subwoofer output, and digital audio, while video connectors transmit standard definition composite video or high-quality component video signals.
Audio Connectors
Stereo RCA (Red and White)
This is the most common configuration and the one most people immediately recognize. In a stereo setup, sound is split into two channels to create a sense of space and direction. The red connector is universally used for the right audio channel, while the white (or sometimes black) connector is used for the left audio channel. You will find these ports on nearly every TV, amplifier, receiver, and audio source that supports analog sound.
Mono RCA
A mono, or monophonic, signal sends all audio information through a single channel. While less common for home listening today, mono RCA connectors are still used in some public address systems, for certain musical instruments, and with some older equipment. It uses a single RCA plug, often black or unlabeled.
Subwoofer RCA (LFE)
In a home theater system, the deep, rumbling bass you feel during an action movie comes from a dedicated subwoofer. This speaker is fed a specific signal called the Low-Frequency Effects (LFE) channel—this is the “.1” in a 5.1 or 7.1 surround sound setup. This signal is sent via a single RCA cable, and the port on the receiver and subwoofer is often colored purple or orange to distinguish it from other audio connections.
Digital Coaxial Audio (S/PDIF)
Though it resembles an analog RCA cable, this connector carries a digital audio stream—commonly used for surround-sound formats like Dolby Digital. The cable impedance and shielding differ internally to preserve the digital signal integrity.
Video Connectors
Composite Video (Yellow)
Transmits standard-definition video over a single cable by combining brightness (luma) and color (chroma) information. While susceptible to noise, it remains a simple solution for older TVs and VCRs.
Component Video (Red, Green, Blue)
A significant step up in analog video quality, component video splits the signal into three separate cables. This separation preserves the purity of the video information, resulting in a much sharper, clearer, and more color-accurate picture. The signals are:
- Y (Green Plug): Carries the “Luma” signal, which is the black-and-white brightness information of the picture.
- Pb (Blue Plug): Carries the signal representing the difference between the blue signal and the luma.
- Pr (Red Plug): Carries the signal representing the difference between the red signal and the luma.
How to Properly Connect and Use RCA Cables: A Step-by-Step Guide
1. Power Down Your Devices
Always switch off and unplug both the source device (e.g., DVD player, game console) and the receiver/display (TV, amplifier) before making any connections. This prevents voltage spikes that can damage sensitive electronics or produce loud pops in speakers.
2. Match the Colors
RCA uses a universal color code to keep things simple:
- Red → Right audio channel
- White (or Black) → Left audio channel
- Yellow → Composite video
- Green/Blue/Red → Component video (Y/Pb/Pr)
Inserting each plug into its matching-colored jack guarantees that audio and video signals land in the correct circuits.
3. Ensure a Secure Fit
Push each RCA plug straight into its jack until it seats firmly. A loose connector can introduce static, intermittent audio dropouts, or “snow” on the picture. If you feel resistance, wiggle gently—never force the plug at an angle.
4. Organize and Manage Cables
- Bundle loosely: Avoid tight coils or sharp bends that stress conductors.
- Separate audio from power lines: Minimize hum and interference by routing RCA cables away from AC power cords.
- Label inputs/outputs: If your setup has multiple devices, small tags or colored zip-ties help you reconnect quickly.
Common Mistakes to Avoid with RCA Connectors
Swapping Left and Right Audio
Plugging red into the left jack (or white into the right) swaps channels, ruining stereo imaging and potentially confusing surround-sound processors.
Using Worn or Poor-Quality Cables
Frayed insulation, bent pins, or inadequate shielding degrade signals. Invest in mid-range cables with gold-plated connectors and proper strain relief.
Half-Inserted Plugs
A plug that’s not fully seated often causes crackling, hum, or a blank screen. Always double-check each connection by giving the cable a gentle tug.
Neglecting Color-Coding on Component Video
Confusing the red audio cable with the red component-video cable is a common pitfall. Remember: in a component setup, the red plug carries the Pr video signal—not right-channel audio.
RCA vs. HDMI: Understanding the Key Differences
Analog vs. Digital
- RCA transmits analog signals that can degrade over distance and through inferior cables.
- HDMI carries uncompressed digital audio and video over one cable, supporting modern resolutions and surround formats.
| Feature | RCA | HDMI |
| Signal Type | Analog | Digital |
| Audio/Video | Separate Cables | All-in-One Cable |
| Max Resolution | Standard-Definition to SD | Up to 8K and beyond |
| Audio Formats | Stereo / Simple Surround | Dolby Atmos, DTS:X, etc. |
| Best Use Cases | Legacy devices, audio gear | TVs, gaming, streaming boxes |
When to Choose Which
- Use RCA for turntables, vintage game consoles, older camcorders, and analog-only audio gear.
- Opt for HDMI when you need high-definition video, multichannel digital audio, or copy-protected content (e.g., Blu-ray).
How to Convert RCA to HDMI (and Vice Versa)
Why You Need an Active Converter
Analog RCA and digital HDMI use fundamentally different signal types. A passive cable adapter won’t suffice—you need an active converter box that digitizes or analog-izes the signal.
RCA to HDMI
- Connect RCA Cables to the Converter: Plug composite (yellow) and stereo (red/white) cables into the converter’s RCA inputs.
- Power the Converter: Many units require a USB or AC adapter to power the internal circuitry.
- Attach HDMI Output: Run an HDMI cable from the converter’s HDMI OUT port to your TV.
- Set TV Input: Select the matching HDMI input on your TV—your analog source should now appear upscaled to 720p or 1080p.
HDMI to RCA
- Connect HDMI Source: Plug your Blu-ray player, streaming stick, or game console into the converter’s HDMI IN port.
- Power the Converter: As above, ensure the converter is powered via USB or wall adapter.
- Attach RCA Outputs: Run the yellow, red, and white RCA cables from the converter’s analog outputs to your legacy TV or stereo receiver.
- Select Composite/Audio Input: On your display or receiver, choose the correct RCA input. You should now see and hear your digital device on older equipment.
Choosing the Best RCA Cables for Your System
Material Matters
- Gold-Plated Connectors: Resist corrosion and ensure reliable contact over years of plugging and unplugging.
- Oxygen-Free Copper (OFC) Conductors: Offer lower resistance and better signal fidelity in audio applications.
Shielding
- Braided + Foil Shield: Provides maximum protection against electromagnetic interference (EMI) and radio‐frequency interference (RFI).
- Dual Shielding: Ideal for long runs or installations near power-heavy equipment.
Cable Length and Build Quality
- Keep Runs Short (Under 15 ft): Analog signals degrade over distance; stay within 10–15 feet for best results.
- Strain Relief & Thick Jacket: Prevents internal wire breakage and withstands daily handling.
Troubleshooting Common RCA Issues
No Sound or Picture
- Verify both devices are powered on and set to the correct input/output.
- Re-seat each RCA plug, ensuring correct color matches.
- Swap in a known-good cable to isolate a faulty lead.
Humming or Buzzing Noises
- Often a ground-loop issue: use an inline ground-loop isolator on the audio cable, or plug both devices into the same power strip.
Poor Audio/Video Quality
- Check for bent or corroded pins—clean with a dry, lint-free cloth or isopropyl alcohol.
- Upgrade to a higher-shielded cable if you notice hiss, static, or visual artifacts.
Frequently Asked Questions (FAQs)
Q: Can I use any RCA cable for any connection?
A: No—audio, composite video, and digital-coax cables have different impedance and shielding. Use cables designated for each application.
Q: Are expensive RCA cables worth the extra cost?
A: After reaching solid build quality (gold plating, proper shielding), further price hikes yield minimal audio/video improvement. Mid-range, well-reviewed cables are usually best.
Q: Can RCA cables carry surround-sound audio?
A: Yes—digital coaxial (S/PDIF) RCA cables transmit compressed surround formats like Dolby Digital and DTS, but they must be 75 Ω-rated for reliability.
Q: How do I clean RCA connectors safely?
A: Power down gear, unplug cables, then gently wipe pins with a dry, lint-free cloth or a swab lightly moistened with isopropyl alcohol. Allow to air-dry completely before reconnecting.
Conclusion
RCA connectors have stood the test of time, bridging generations of audio and video technology. From vintage turntables to modern subwoofers, knowing how to select, connect, convert, and troubleshoot RCA cables ensures you’ll get the best possible performance from both legacy and contemporary gear.
Whether you’re reliving classic gaming memories or optimizing your hi-fi rig, this guide has given you the tools and confidence to master RCA connections.
