J3F2C-W-B

  • The industry’s first waterproof XLR socket with IP65 waterproof rating

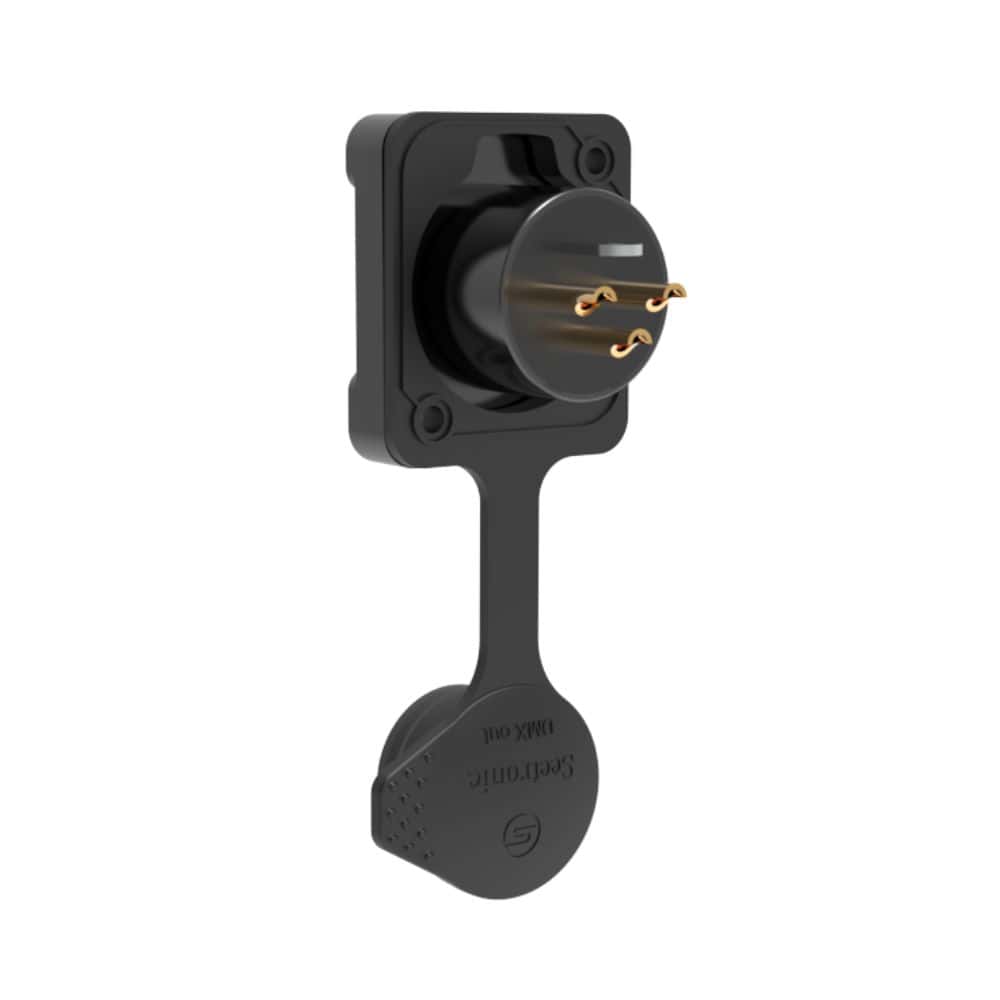

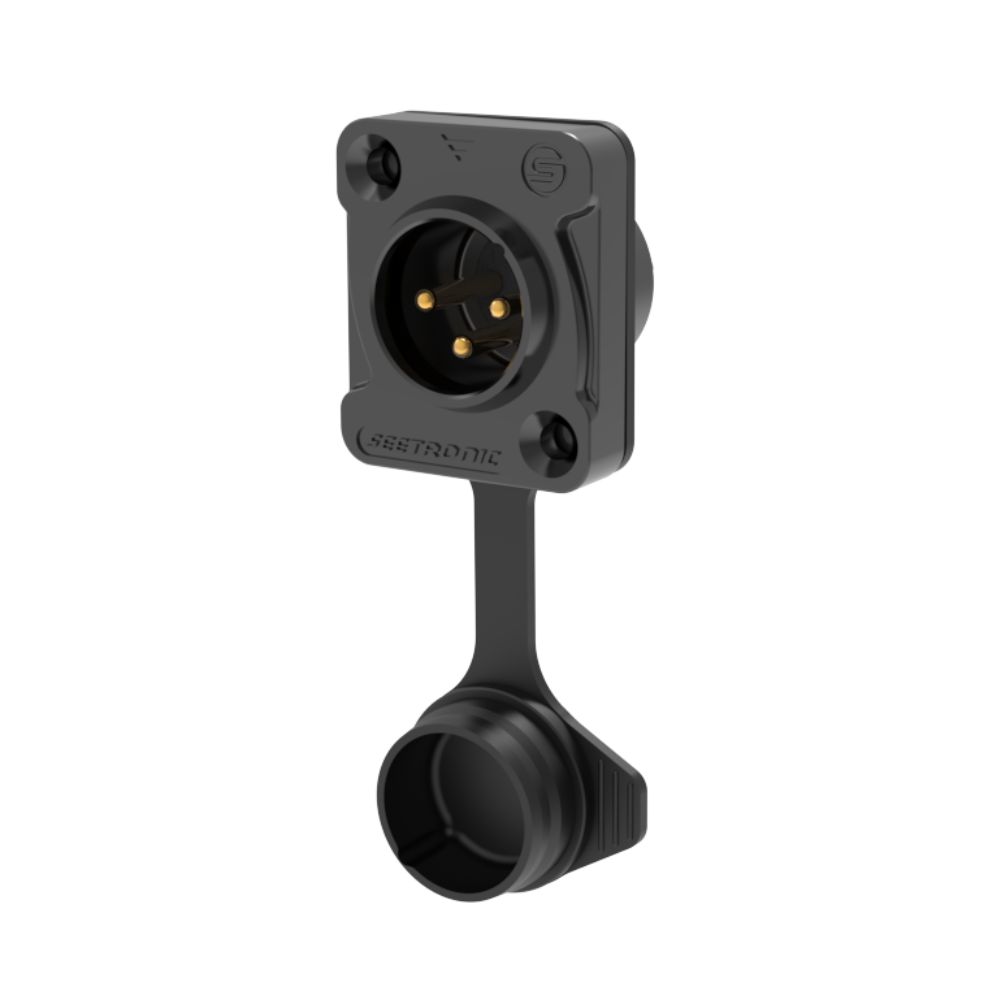

  • 3-pin XLR waterproof male socket with zinc alloy and blackplated housing and gold plated contacts
  • Αδιάβροχη επεξεργασία στο πίσω μέρος για να αποτρέψει την είσοδο υδρατμών στο εσωτερικό του εξοπλισμού
  • Το μεταλλικό κέλυφος σχήματος D με βιομηχανικές τυπικές διαστάσεις εγκατάστασης τύπου D παρέχει συμβατότητα εγκατάστασης
  • Τοποθετήστε από το μπροστινό μέρος του πίνακα
  • Επιλύστε στον μέγιστο βαθμό τις απαιτήσεις γρήγορης σύνδεσης της βιομηχανίας φωτισμού DMX σε εξωτερικές συνθήκες για είσοδο και έξοδο σήματος
Μοντέλο: J3F2C-W-B (03)Categories: Σειρά W IP65
Επικοινωνήστε μαζί μας

Καθέκαστα

Παράμετροι προϊόντος
Τύπος σύνδεσης XLR
Γένος Αρσενικός
Ηλεκτρικές παράμετροι
Χωρητικότητα μεταξύ των επαφών ≤ 4 pF
Αντοχή επαφής   ≤ 5 mΩ
Διηλεκτρική αντοχή 1500 V DC
Αντοχή μόνωσης > 10 GΩ (αρχική)
Ονομαστικό ρεύμα ανά επαφή 16 Α
Ονομαστική τάση < 50 V
Μηχανικές Παράμετροι
Δύναμη εισαγωγής ≤ 20 N
Δύναμη απόσυρσης ≤ 20 N
Διάρκεια ζωής > 1000 κύκλοι ζευγαρώματος
Σχήμα πλαισίου Μέγεθος D
Υλικές και Περιβαλλοντικές Παράμετροι
Επαφές Κράμα Cu
Επιμετάλλωση επαφής Au
Εισάγω PA
Στέγαση Κράμα ψευδαργύρου
Επιμετάλλωση περιβλήματος Μαύρη επιμετάλλωση
Ποιότητα επιβραδυντικού φλόγας UL 94 HB
Κατηγορία προστασίας IP65
Εύρος θερμοκρασίας -30°C ~ +80°C
Πρότυπα και Πιστοποιήσεις
Πρότυπα IEC 61076-2-103
Συγκολλησιμότητα IEC 68-2-20

Λήψεις

Seetronic J3F2C-W-B Datasheet

Seetronic J3F2C-W-B 规格书

Περιγραφή

J3F2C-W-B (03) – Waterproof XLR Socket

The J3F2C-W-B (03) is the industry’s first waterproof XLR socket with an IP65 waterproof rating, setting a new standard in durable, high-performance connectors. Designed specifically for the challenges of outdoor environments and demanding applications such as DMX lighting systems, it provides secure signal input and output connections while ensuring protection against water ingress.

Χαρακτηριστικά προϊόντος:

  • Waterproof Performance: Engineered as the first waterproof XLR socket with an IP65 rating, ensuring durability in harsh environmental conditions.
  • Υψηλής ποιότητας κατασκευή: Utilizes a zinc alloy housing with black plating and gold-plated contacts for exceptional conductivity and corrosion resistance.
  • Καινοτόμος Σχεδιασμός: Features air-proof treatment at the rear to prevent water vapor intrusion, maintaining optimal operation of connected equipment.
  • Standardized Compatibility: The D-shaped, metal chassis matches industry-standard installation dimensions for seamless integration.
  • Ease of Installation: Front panel installation with an included waterproof gasket cover simplifies setup, making it highly practical in demanding environments.
  • Targeted for Outdoor Signal Use: Designed to meet the rapid connection needs of the DMX lighting industry for outdoor signal input and output.

Συσκευασία και αξεσουάρ:

  • Συσκευασία: Blister box with 20 pcs per blister box, up to 400 pcs in master cartons.
  • Συμπεριλαμβανόμενα αξεσουάρ: Waterproof gasket cover, back fastener plate, screws, and nuts.

Πιστοποιήσεις: This model complies with IEC 61076-2-103 standards, offering assured reliability and performance.

Οδηγίες συναρμολόγησης: Assemble by placing the waterproof gasket cover on the rear side of the socket. Install from the panel’s front side and secure with M3 screws using 0.5 Nm torque in a clockwise direction.

With its exceptional quality, rugged waterproof design, and seamless compatibility, the J3F2C-W-B is the ultimate solution for outdoor DMX applications, combining precision, durability, and reliability to support your most demanding environments.
