K3F2C-W

  • Η πρώτη αδιάβροχη υποδοχή XLR της βιομηχανίας με αδιάβροχη βαθμολογία IP65

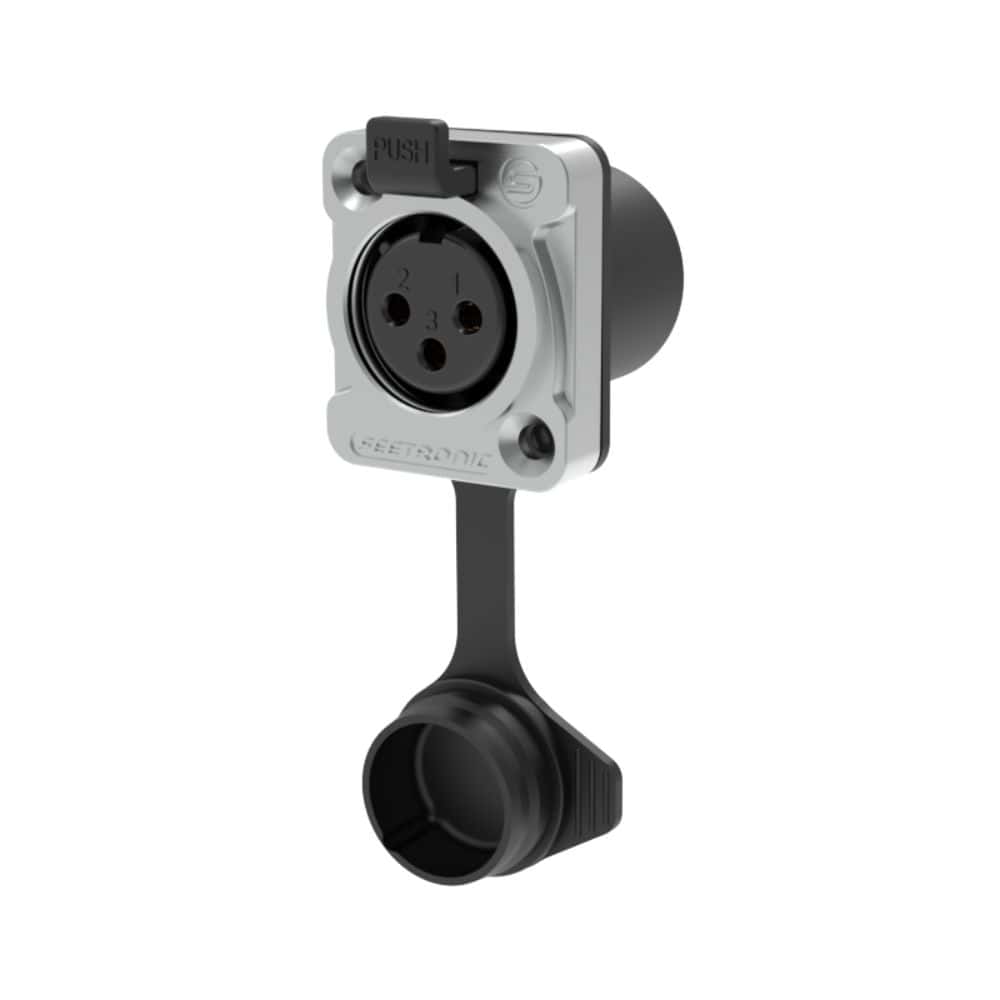

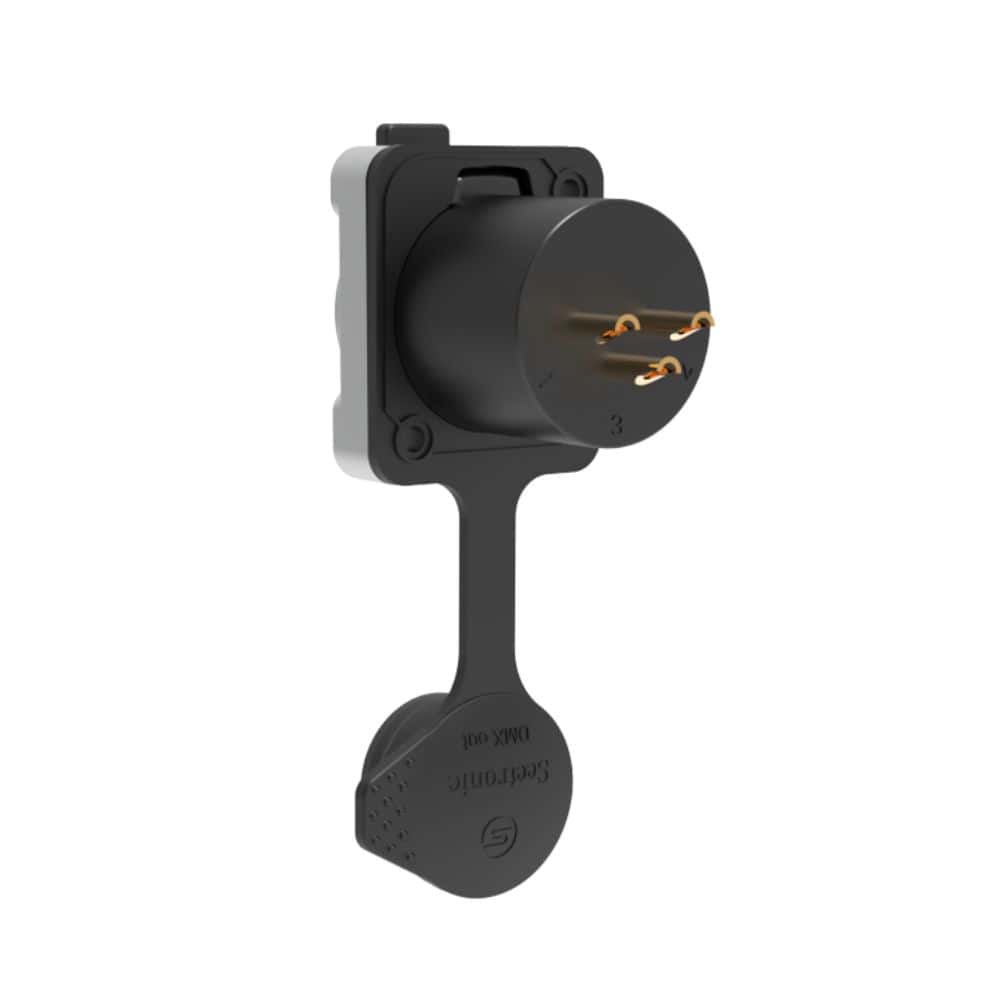

  • 3-pin XLR waterproof female socket with zinc alloy and pearl chrome plated housing and gold plated contacts
  • Αδιάβροχη επεξεργασία στο πίσω μέρος για να αποτρέψει την είσοδο υδρατμών στο εσωτερικό του εξοπλισμού
  • Το μεταλλικό κέλυφος σχήματος D με βιομηχανικές τυπικές διαστάσεις εγκατάστασης τύπου D παρέχει συμβατότητα εγκατάστασης
  • Εγκαταστήστε από το μπροστινό μέρος του πίνακα
  • Επιλύστε στον μέγιστο βαθμό τις απαιτήσεις γρήγορης σύνδεσης της βιομηχανίας φωτισμού DMX σε εξωτερικές συνθήκες για είσοδο και έξοδο σήματος
Μοντέλο: K3F2C-W(04)Categories: Σειρά W IP65
Επικοινωνήστε μαζί μας

Καθέκαστα

Παράμετροι προϊόντος
Τύπος σύνδεσης XLR
Γένος Θηλυκός
Ηλεκτρικές παράμετροι
Χωρητικότητα μεταξύ των επαφών ≤ 4 pF
Αντοχή επαφής   ≤ 5 mΩ
Διηλεκτρική αντοχή 1500V DC
Αντοχή μόνωσης > 10 GΩ (αρχική)
Ονομαστικό ρεύμα ανά επαφή 16 Α
Ονομαστική τάση < 50 V
Μηχανικές Παράμετροι
Δύναμη εισαγωγής ≤ 20 N
Δύναμη απόσυρσης ≤ 20 N
Διάρκεια ζωής > 1000 κύκλοι ζευγαρώματος
Σχήμα πλαισίου Μέγεθος D
Υλικές και Περιβαλλοντικές Παράμετροι
Επαφές Κράμα Cu
Επιμετάλλωση επαφής Au
Εισάγω PA
Στέγαση Κράμα ψευδαργύρου
Επιμετάλλωση περιβλήματος Cr
Ποιότητα επιβραδυντικού φλόγας UL 94 HB
Κατηγορία προστασίας IP65
Εύρος θερμοκρασίας -30°C ~ +80°C
Πρότυπα και Πιστοποιήσεις
Πρότυπα IEC 61076-2-103
Συγκολλησιμότητα IEC 68-2-20

Λήψεις

Seetronic K3F2C-W Datasheet

Seetronic K3F2C-W 规格书

Περιγραφή

The K3F2C-W is a high-performance IP65-rated XLR socket specifically designed to meet the demanding requirements of outdoor applications, such as DMX lighting in harsh environments.

The K3F2C-W (04) features a durable build with contacts made of copper alloy and gold plating for optimal conductivity, PA insert material, and a zinc alloy housing with a pearl chrome finish for enhanced robustness. Its electrical performance includes a rated current per contact of 16 A, a dielectric strength of 1500V DC, and contact resistance below 5 mΩ, ensuring reliable operation.

Features:

  • Waterproof Build: It is the first in the industry with a waterproof rating of IP65, ensuring durability under challenging environmental conditions.
  • Ανθεκτική σχεδίαση: Constructed with robust zinc alloy housing, pearl chrome plating, and gold-plated contacts for optimal performance and corrosion resistance.
  • D-Shaped Metal Shell: Incorporates industry-standard D-type installation dimensions, ensuring broad compatibility.
  • Reliable Environmental Seal: Engineered with an air-proof treatment at the rear to prevent water vapor intrusion into connected equipment.
  • Front Installation: Designed for simplified installation, directly mounted from the panel’s front.
  • DMX Lighting Connectivity: Specifically tailored for fast and secure connections in the DMX lighting industry, supporting outdoor lighting setups with reliable signal input and output.

Designed for minimal wear, it offers a service life exceeding 1000 mating cycles and maintains high insulation resistance above 10 GΩ. It operates efficiently in temperatures ranging from -30°C to +80°C and meets flame retardancy standards with a UL 94 HB rating. Certified under IEC 61076-2-103, it provides superior solderability and includes IP65-rated waterproofing with an innovative air-proof rear seal for environmental resilience.

Συσκευασία:

  • Supplied with a waterproof gasket cover for increased protection.
  • Packaged in blister boxes, with 20 units per box and up to 400 units per master carton.

Οδηγίες εγκατάστασης:

Mount the socket from the front panel after attaching the protective cover, then secure with screws using 0.5 Nm torque.

The K3F2C-W combines advanced functionality, rugged design, and adaptability, making it the perfect solution for industrial and entertainment applications that require dependable waterproof performance.
