Description

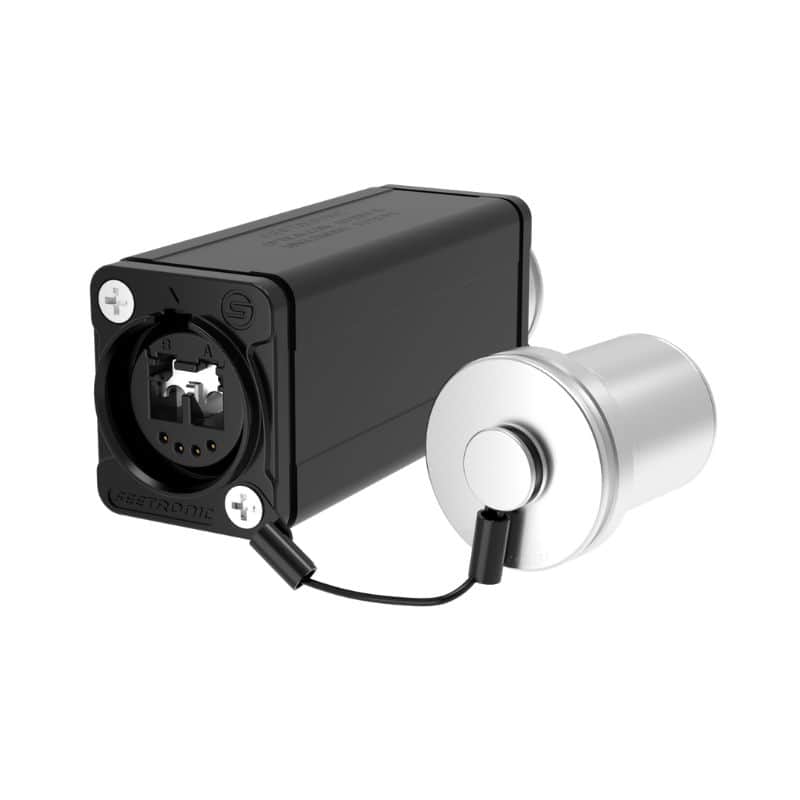

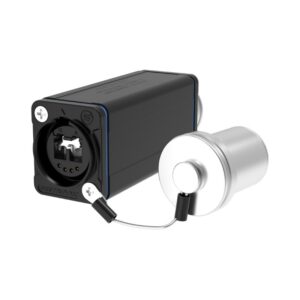

The SO2DFF-M Optical Fiber Coupler is a robust and reliable dual-channel fiber connectivity solution, designed to facilitate seamless connections in various optical communication applications. Engineered with high durability and advanced features, this coupler meets the demands of modern networking environments.
Key Features:
- Dual-channel LC‑Duplex interface compatible with conventional multimode LC connectors.
- Low insertion loss: < 0.4 dB at 850 nm / 1300 nm.
- IP65-capable when used with the SO2M plug — suitable for outdoor or harsh-environment feed‑through applications.
- Automatic sealing shutter for feed‑through connections to protect fiber endfaces when unmated.
- Push‑pull locking for quick, secure mating and unmating.
- Compact, rugged construction with an aluminum-alloy housing and ceramic split sleeve.
Packaging and Accessories:
- Supplied in pearl‑cotton protective packaging; one product per small box.
- Standard shipment lists no accessories included (back fastener plate, screws/nuts, or others only if specified).
Basic installation
- Open the stainless‑steel dust cover.
- Insert an SO2M connector into one side of the SO2DFF‑M.
- Repeat on the opposite side to complete the feed‑through connection between two optical fiber cables.
Applications
- Outdoor or indoor fiber feed‑throughs requiring environmental sealing
- Telecommunications and data center multimode fiber interconnects
- Harsh‑environment installations where ruggedness and low optical loss are required
The SO2DFF-M Optical Fiber Coupler is an ideal choice for applications requiring high reliability, performance, and environmental protection in fiber optic connectivity.
