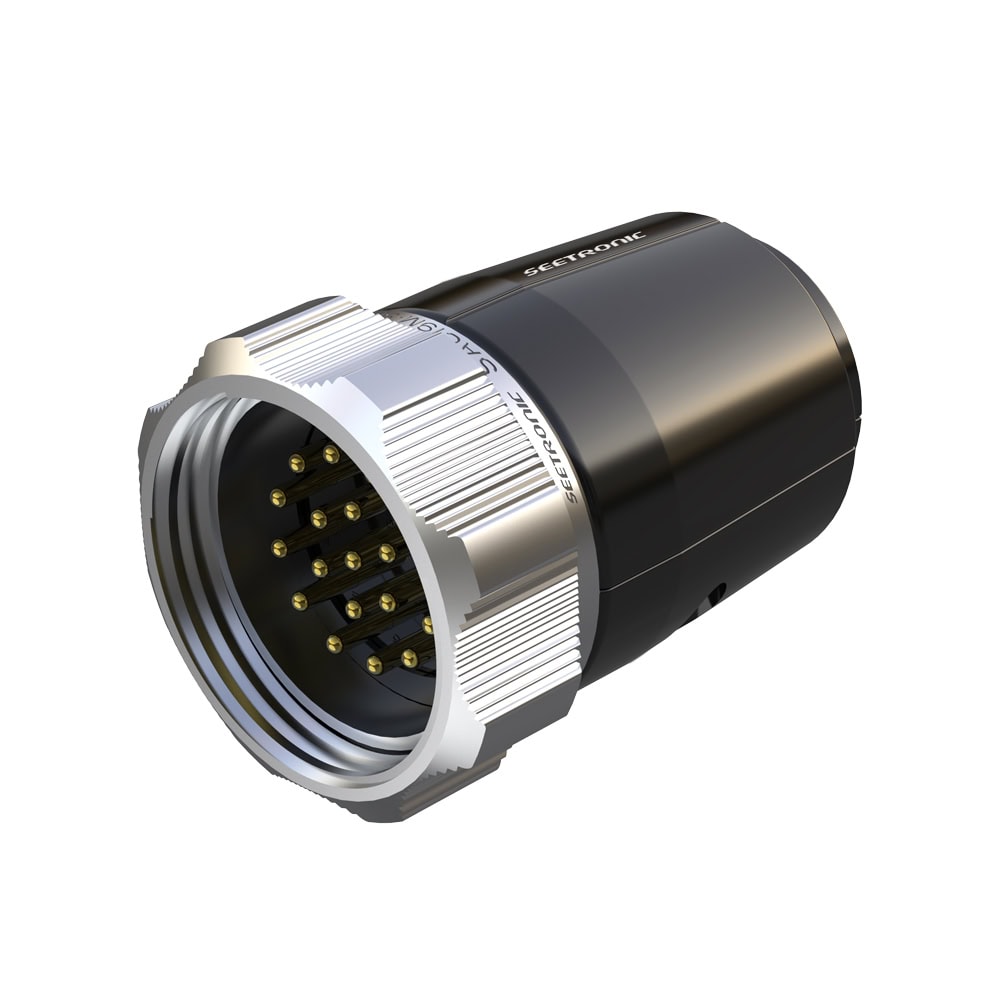

SAC19M-SPC
Product Features
- 19 pin male power cable connector constructed with lightweight aluminum alloy housing for superior corrosion resistance
- Gold plated contact surfaces to withstand frequent mating and unmating cycles
- Flame retardancy rated UL94 V0
- Wide operating temperature range for stable long-term power transmission from -30°C to 85°C
- Solder-type terminal connection, equipped with grounding lug, ground screw and washer for reliable earthing connection
- Matched with SAC19F-SPC female connector
- Attention: No live mating/unmating
Contact us
Details
| Electrical Parameters | |
| Number of pole | 12P + 7PE |
| Rated Current | 20A UL |
| Rated Voltage | 400V AC UL |
| Contact Resistance | ≤ 5 mΩ |
| Insulation Voltage（at sea level） | 1750V AC（Sea Level） |
| Insulation Resistance | > 1000 MΩ |
| Attention | No live mating/unmating |
| Mechanical Parameters | |
| Wire range | 12 AWG |
| Cable OD | Ф 14-30 mm |
| Type of Terminals | Solder |
| Material and Environmental Parameters | |
| Housing | Al alloy |
| Contacts | Cu alloy |
| Contact plating | Au |
| Flame-retardant grade | UL94V-0 |
| Temperature range | -30°C ~ +85°C |
| Standards and Certifications | |
| Standards | UL1977 |
| Certifications | UL: E359036 |
Downloads
Description
Introducing the SAC19M-SPC, a heavy-duty 19pin male power plug built for reliable multi-circuit power interconnection. This power plug is engineered for durability and safety, making it ideal for various multichannel power distribution applications in challenging environments.
Key Features
- Aluminum Alloy Housing: The SAC19M-SPC adopts lightweight aluminum alloy housing, delivering outstanding anti-corrosion performance for long-term field deployment.
- Gold-plated Contacts: Gold-plated contact surfaces guarantee stable conductivity and excellent performance against frequent plugin and pullout operations.
- Wide Temperature Adaptability: Operates steadily within -30°C ~ 85°C, supporting continuous longtime power transmission under extreme temperature conditions.
- Flame-Retardant Performance: UL94 V0 flame retardant rating improves fire-safety performance of the whole connector assembly.
- Grounding Accessories: Supplied with grounding lug, ground screw and washer to realize secure shell earthing.
- Solder Termination: Solder-style contact termination for solid wire-to-pin connection.
- Important Safety Notice: Must not perform mating or unmating under live-power condition.
Electrical Parameters
- Number of pole: 12P +7PE.
- Rated Current: 20A UL.
- Rated Voltage:400V AC UL.
- Contact Resistance: ≤5 mΩ.
- Insulation Voltage (at sea level):1750V AC.
- Insulation Resistance: >1000 MΩ.
Mechanical Parameters
- Wire range:12 AWG.
- Cable OD: Φ14-30 mm.
- Type of Terminals: Solder.
Material and Environmental Parameters
- Housing: Aluminum alloy.
- Contact surface: Gold-plated.
- Flame retardant rating: UL94 V0.
- Temperature range:-30°C ~ +85°C.
Assembly Instructions
- Pass cable through housing parts, strip the cable to specified dimensions.
- Slide heat-shrink tubing over each cable conductor, solder conductors to insert assembly, shift heat-shrink tubing to cover solder joints and complete heat-shrinking treatment.
- Grind off coating at designated positions on upper and lower aluminum housings for proper earthing contact.
- Fasten ground wire onto housing with ground screw and washer.
- Pre-assemble cable clamp, lock cable clamp to harness assembly with M4×15 cross-recessed screws. Install plastic cable clip into lower-housing and complete final housing assembly.
Packaging Information
- Inner Bag1:1 piece 19pin male connector assembly.
- Inner Bag2:1 piece upper 19pin housing +1 piece lower 19 pin housing +1 set plastic cable clamps (2 pcs each of Φ14~18, Φ19~24, Φ25~30 plastic cable clamps).
- Inner Bag3:1 piece19pin metal cable clamp +4 pcs M4×15 cross recessed screws.
- Pack all inner bags into one large heat-seal bag and heat-seal the opening.
- Packaging Quantity:10 heat-seal bags per inner carton;5 inner cartons per outer carton.
