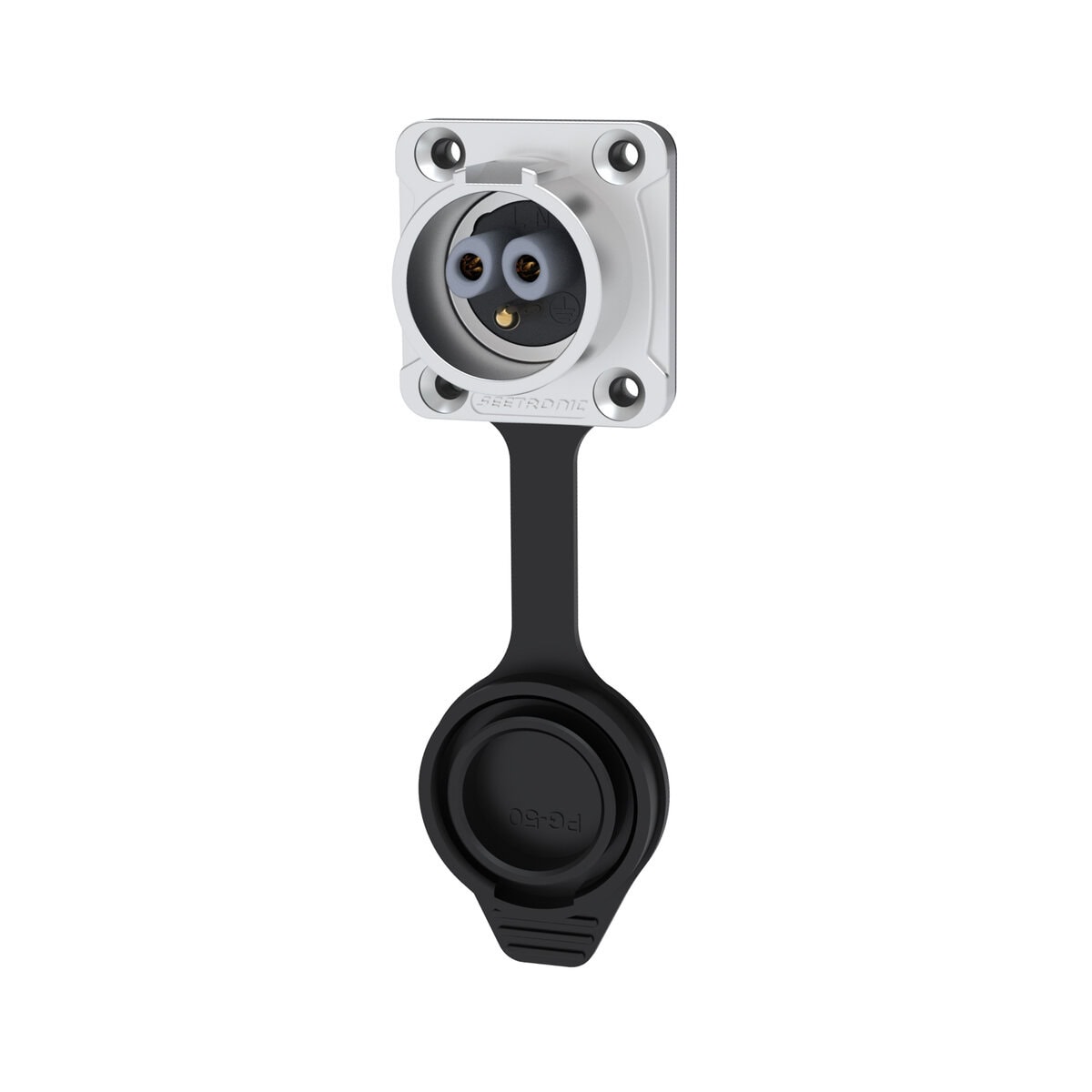

SAC3FPG-70C
Product Features
- Multiple types of 3-inner core design to meet the diversity of industrial needs
- Zinc alloy shell and internal component material with complete electromagnetic and RF interference protection
- Gold plated contacts with high corrosion resistance and electrical conductivity, effectively cope with the current generated temperature change.
- Rated current 20A rms
- IP65 protection rating
Contact us
Details
| Electrical Parameters | |
| Number of Contacts | 2 + PE |
| Rated Current | 20 A |
| Rated Voltage | 250V AC |
| Contact Resistance | ≤ 5 mΩ |
| Basic insulation/ Reinforced insulation | 1500V AC / 3000V AC |
| Insulation Resistance | > 1000 MΩ |
| Material and Environmental Parameters | |
| Housing | Zinc diecast (ZnAl4Cu1) |
| Contacts | Cu alloy |
| Contact plating | Au |
| Flame-retardant grade | UL 94 V-0 |
| Temperature range | -25°C ~ +85°C |
| Protection degree | IP65 |
Downloads
Description
The SAC3FPG-70C is a high-performance, IP65-rated waterproof power socket. It provide reliable electrical connectivity in demanding industrial environments. Constructed with a robust zinc alloy shell and featuring gold-plated contacts, it offers superior protection against electromagnetic interference and environmental stressors.
Key Product Features
- Industrial Grade Design: Features a 3-inner core design (2 + PE) to meet diverse industrial requirements.
- Enhanced Shielding: The zinc alloy shell and internal components provide comprehensive protection against electromagnetic (EMC) and RF interference.
- High-Quality Contacts: Gold-plated (Au) contacts ensure high corrosion resistance and excellent electrical conductivity, effectively managing temperature fluctuations during high-current operation.
- Weather Resistance: Rated at IP65, suitable for environments where protection against dust and water ingress is critical.
Installation and Wiring
The SAC3FPG-70C is designed for front-panel mounting and supports secure termination methods.
- Wiring Type: The socket supports both Soldering and M3 Screw terminal connections.
- Assembly Process:
- Fit the included protective waterproof cover onto the rear side of the socket.
- Insert the assembly through the front of the panel cut-out.
- Secure the unit by tightening the screws in a clockwise direction.
- Torque Requirement: Screws should be tightened to a specific torque of 0.5 Nm.
Packaging and Accessories
Each unit is provided in a single PE bag containing the socket body and the mandatory waterproof cover. Bulk packaging includes 50 pieces per inner carton and 250 pieces per master carton. Included accessories are:
- Screws and Nuts
- Protective/Waterproof cover
