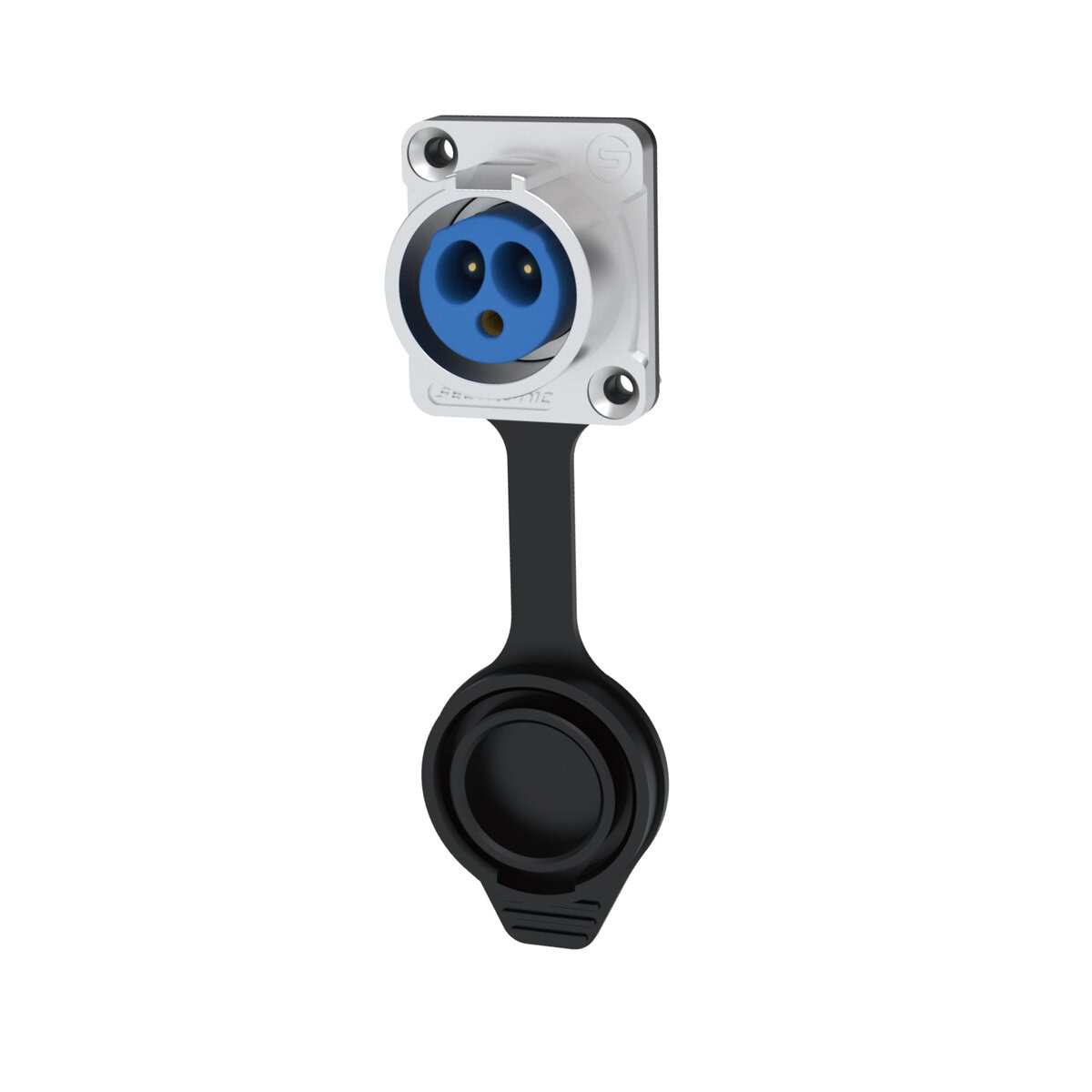

SAC3MPG-10C
Product Features
- Multiple types of 3-inner core design to meet the diversity of industrial needs
- Zinc alloy shell and internal component material with complete electromagnetic and RF interference protection
- Gold plated contacts with high corrosion resistance and electrical conductivity, effectively cope with the current generated temperature change.
- Rated current 20A rms
- IP65 protection rating
Contact us
Details
| Electrical Parameters | |
| Number of Contacts | 2 + PE |
| Rated Current | 20 A |
| Rated Voltage | 250V AC |
| Contact Resistance | ≤ 5 mΩ |
| Basic insulation/ Reinforced insulation | 1500V AC / 3000V AC |
| Insulation Resistance | > 1000 MΩ |
| Mechanical Parameters | |
| Service life | > 1000 mating cycles |
| Cable Size | 2.5 mm2 |
| Material and Environmental Parameters | |
| Housing | Zinc diecast (ZnAl4Cu1) |
| Contacts | Cu alloy |
| Contact plating | Au |
| Flame-retardant grade | UL 94 V-0 |
| Temperature range | -25°C ~ +85°C |
| Protection degree | IP65 |
Downloads
Description
The SAC3MPG-10C is a high-performance IP65 waterproof power socket designed for industrial applications requiring robust electrical connections in demanding environments. It features a 3-inner core design (2 + PE) and is built to withstand electromagnetic and radio frequency interference.
Key Features
- Durable Construction: Built with a zinc alloy shell for superior mechanical strength and protection against interference.
- High Conductivity: Features gold-plated contacts that offer high corrosion resistance and excellent electrical conductivity, effectively managing temperature changes during current flow.
- Environmental Protection: Rated at IP65, providing reliable protection against dust and water ingress.
- Versatile Design: The 3-core design is tailored to meet diverse industrial needs.
Assembly Instructions:
- Place the provided protective cover on the rear side of the socket.
- Install the assembly onto the front of the panel (at the panel cut-out).
- Secure the unit by tightening the screws in a clockwise direction using 0.5 Nm of torque.
Packaging Details:
- Each unit is individually packed in a PE bag, which includes the socket body and the waterproof protective cover.
- Standard bulk packaging includes 50 pieces per inner carton and 250 pieces per master carton.
