SAC3MPG-70C
Product Features
- Multiple types of 3-inner core design to meet the diversity of industrial needs
- Zinc alloy shell and internal component material with complete electromagnetic and RF interference protection
- Gold plated contacts with high corrosion resistance and electrical conductivity, effectively cope with the current generated temperature change.
- Rated current 20A rms
- IP65 protection rating
Contact us
Details
| Electrical Parameters | |
| Number of Contacts | 2 + PE |
| Rated Current | 20 A |
| Rated Voltage | 250V AC |
| Contact Resistance | ≤ 5 mΩ |
| Basic insulation/ Reinforced insulation | 1500V AC / 3000V AC |
| Insulation Resistance | > 1000 MΩ |
| Mechanical Parameters | |
| Service life | > 1000 mating cycles |
| Cable Size | 2.5 mm2 |
| Material and Environmental Parameters | |
| Housing | Zinc diecast (ZnAl4Cu1) |
| Contacts | Cu alloy |
| Contact plating | Au |
| Flame-retardant grade | UL94V-0 |
| Temperature range | -25°C ~ +85°C |
| Protection degree | IP65 |
Downloads
Description

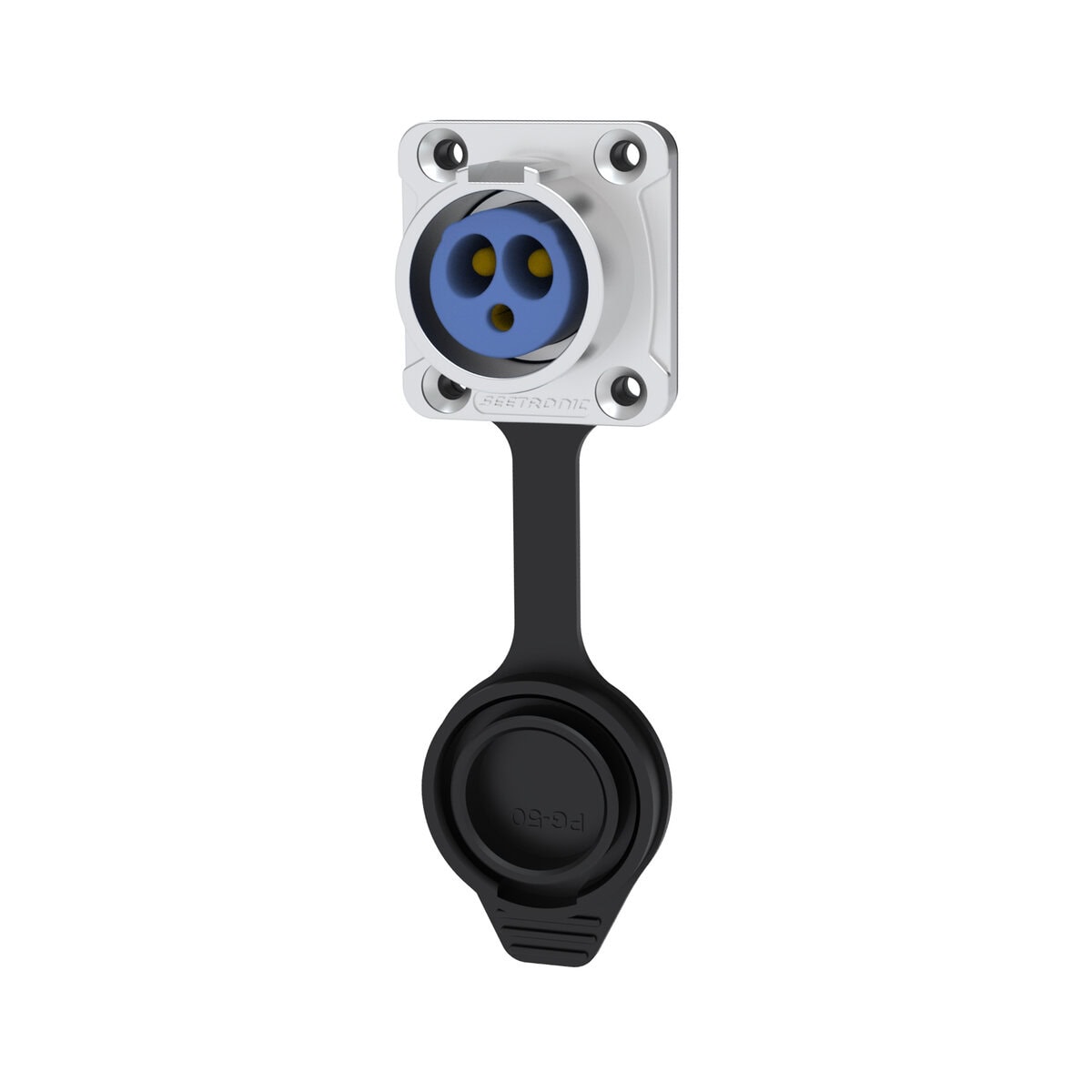

SAC3MPG-70C is an IP65-rated waterproof power socket designed for demanding industrial environments. It features a robust 3-core design and high-quality materials to ensure reliable electrical performance and protection against interference.
Key Product Features
- Industrial Versatility: Utilizes a 3-inner core design ($2 + PE$) to meet diverse industry requirements.
- Robust Protection: Features a zinc alloy shell and internal components that provide comprehensive electromagnetic and RF interference protection.
- High Conductivity: Equipped with gold-plated contacts that offer superior corrosion resistance and electrical conductivity, effectively managing temperature changes during current flow.
- Weather Resistance: Rated at `IP65` for protection against dust and water ingress.
- Performance: Supports a rated current of $20A\text{ rms}$.
Installation and Assembly Details
- Wiring Method: Supports terminal connection via Soldering.
- Assembly Steps:
- Place the protective cover on the rear side of the socket.
- Install the assembly onto the front of the panel cut-out.
- Secure the unit by tightening the screws clockwise with a torque of 0.5 Nm.
- Included Accessories: The package typically includes the socket, a waterproof protective cover, and the necessary screws and nuts.
Packaging Information
Items are individually packed in PE bags (including the socket and waterproof cover).
Bulk packaging consists of 50 pieces per inner carton and 250 pieces per master carton.
