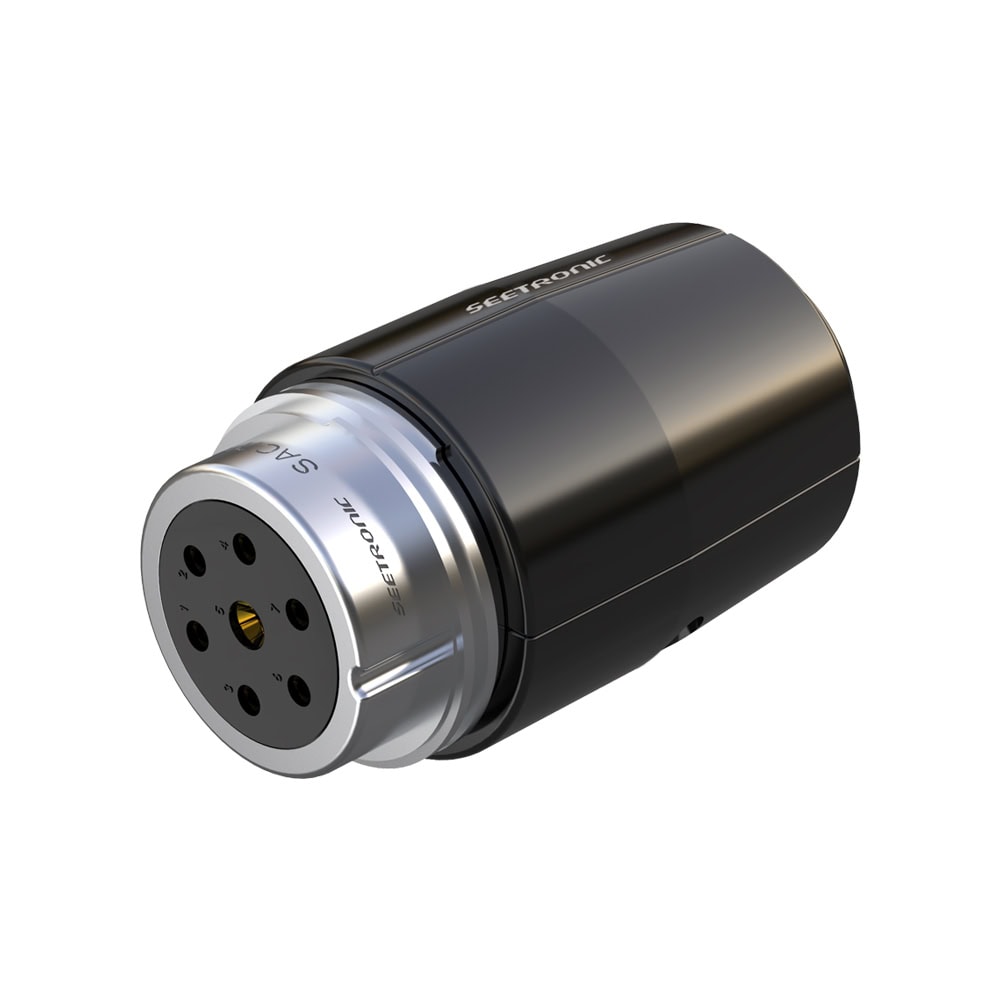

SAC7F-SPC
Product Features
- 7 pin female power cable connector constructed with lightweight aluminum alloy housing for superior corrosion resistance
- Gold-plated contact surfaces to withstand frequent mating and unmating cycles
- Flame retardancy rated UL94 V0
- Wide operating temperature range for stable long-term power transmission from -30°C to 85°C
- Solder-type terminal connection, equipped with grounding lug, ground screw and washer for reliable earthing connection
- Matched with SAC7M-SPC female connector
- Attention: No live mating/unmating
Contact us
Details
| Electrical Parameters | |
| Number of pole | 6P + 1PE |
| Rated Current | No. 1/2/3/4/6/7 20A, &No. 5 50A UL |
| Rated Voltage | No. 1/2/3/4/6/7：400VAC ;No. 5：480VAC UL |
| Contact Resistance | ≤ 5 mΩ |
| Insulation Voltage（at sea level） | 1750V AC（Sea Level） |
| Insulation Resistance | > 1000 MΩ |
| Attention | No live mating/unmating |
| Mechanical Parameters | |
| Wire range | No.1/2/3/4/6/7 wire 12 AWG, No.5 wire 8 AWG |
| Cable OD | Ф 10-20 mm |
| Type of Terminals | Solder |
| Material and Environmental Parameters | |
| Housing | Al alloy |
| Contacts | Cu alloy |
| Contact plating | Au |
| Flame-retardant grade | UL94V-0 |
| Temperature range | -30°C ~ +85°C |
| Standards and Certifications | |
| Standards | UL1977 |
| Certifications | UL: E359036 |
Downloads
Description
Introducing the SAC7F-SPC, a heavy-duty 7pin male power plug built for reliable multi-circuit power interconnection. This power plug is engineered for durability and safety, making it ideal for multi-loop power distribution applications in harsh working environments.
Key Features
- Aluminum Alloy Housing: Light-weight aluminum alloy housing provides excellent corrosion resistance for long-term field-site usage.
- Gold-plated Contacts: Gold-plated contact surfaces ensure stable electrical performance even under frequent mating cycles.
- Wide Temperature Adaptability: Maintains stable power transmission from30°C to 85°.
- Flame-Retardant Performance: UL94 V0 flame retardant rating enhances assembly fire-safety.
- Grounding Accessories: Grounding lug, ground screw and washer included for robust shell earthing.
- Solder Termination: Solder-style termination for secure wire-to-contact connection.
- Important Safety Notice: Must not perform mating or unmating under live-power condition.
Electrical Parameters
- Rated Voltage:No.1/2/3/4/6/7:400V AC;No.5:480VAC UL.
- Contact Resistance: ≤5 mΩ.
- Insulation Voltage (at sea level):1750V AC.
- Insulation Resistance: >1000 MΩ.
Mechanical Parameters
- Wire range:No.1/2/3/4/6/7 wire 12 AWG, No.5 wire 8 AWG.
- Cable OD:φ10~20 mm.
- Type of Terminals:Solder.
Material and Environmental Parameters
- Housing:Aluminum alloy.
- Contact surface:Gold-plated.
- Flame retardant rating:UL94 V0.
- Temperature range:-30°C ~ +85°C.
Assembly Instructions
- Strip the cable to specified dimensions.
- Grind off coating at designated positions on upper and lower housings for good earthing contact.
- Slide heat-shrink tubing over cable conductors, solder conductors to insert assembly, move heat‑shrink tubing to cover solder joints and perform heat-shrinking.
- Secure ground wire to housing by ground screw and washer.
- Pre-assemble cable clamp, fasten cable clamp to harness assembly with screws. Install plastic cable clip into lower-housing and finish full housing assembly.
Packaging Information
- Inner Bag1:1 piece 7 pin male connector assembly.
- Inner Bag2:1 piece upper 7 pin housing +1 piece lower 7 pin housing +1 set plastic cable clamps (2 pcs each of Φ10~12, Φ13~16, Φ17~20 plastic cable clamps).
- Inner Bag3:1 piece 7 pin metal cable clamp +4 pcs M4×15 cross recessed screws.
- Pack all inner bags into one large heat-seal bag and heat-seal the opening.
- Packaging Quantity:10 heat-seal bags per inner carton;5 inner cartons per outer carton.
