SE8FAH-C6-LED
Product Features
- Horizontal PCB mount RJ45 socket, CAT6, PoE++, two LED light pipes through holes on the plastic cover
- Match with SE8MC-1-NEW and SE8MC-02-NEW or any standard RJ45 plug
- Complies with CAT6 according to TIA/EIA 568B and ISO/IEC 11801 standards
- PoE++ compliant according to 802.3bt
Contact us
Details
| Product Parameters | |
| Connection Type | RJ45 |
| Gender | Female |
| Electrical Parameters | |
| Contact resistance | < 10 mΩ |
| Rated current | 0.5A/PIN |
| Rated voltage | 60 V |
| Insulation resistance | ≥ 0.5 GΩ |
| Dielectric strength | 800V DC |
| Frequency range | 1~250 MHz |
| Transmission performance | CAT6 |
| Ethernet power supply | PoE++ acc. IEEE 802.3bt |
| Mechanical Parameters | |
| Insertion force | ≤ 40 N |
| Service life | > 1000 mating cycles |
| Locking device | Latch lock |
| PCB Wiring | Horizontal PCB mount |
| Material and Environmental Parameters | |
| Contacts | Copper alloy |
| Insert | PBT |
| Contact surface | Au |
| Housing plating | PBT |
| Temperature range | -30°C ~ +80°C |
| Standards and Certifications | |
| Standards | ITIA/EIA 568B, IEC11801 |
Downloads
Description

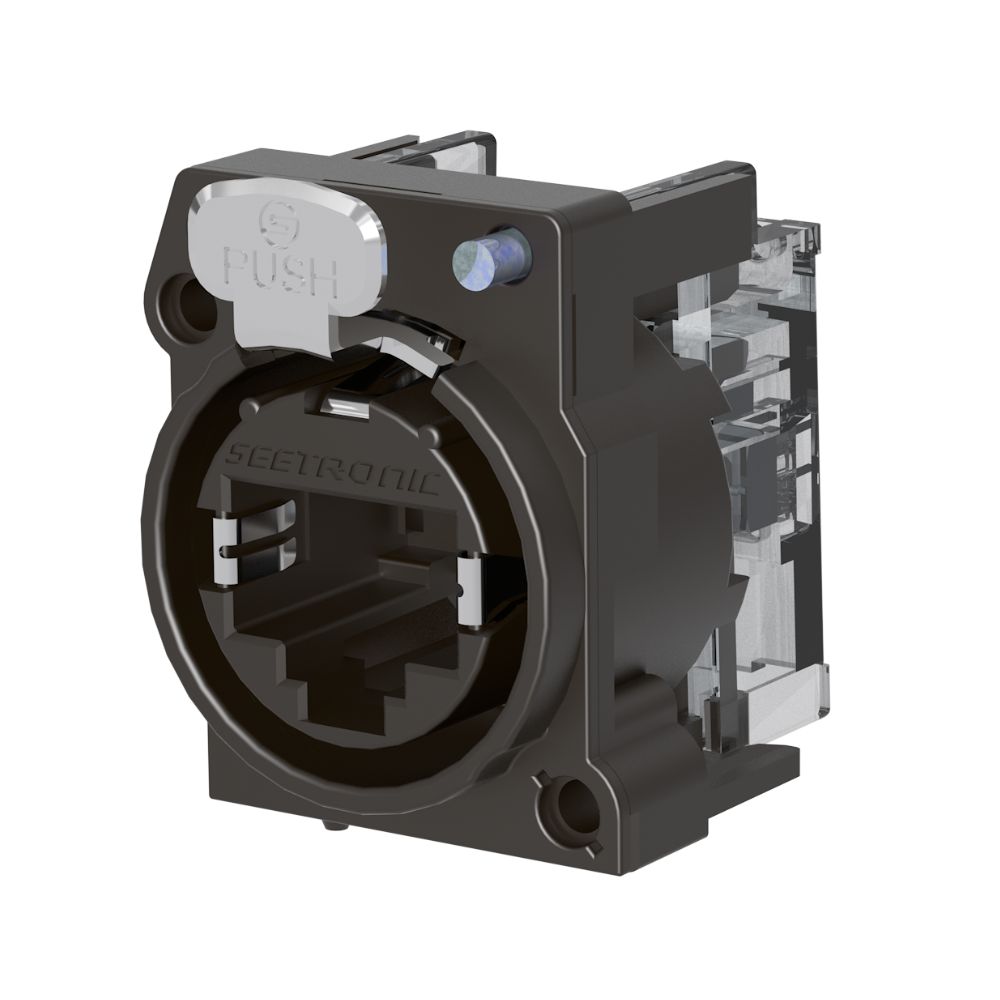

The SE8FAH-C6-LED is a high-performance, horizontal PCB mount RJ45 socket designed for robust and reliable network connectivity. Engineered for professional applications, this connector ensures superior data transmission and power delivery, making it an ideal choice for modern networking infrastructure.
Key Features:
- High-Speed Performance: The socket is fully compliant with CAT6 standards according to TIA/EIA 568B and ISO/IEC 11801, supporting a frequency range of 1-250 MHz for high-speed data transfer.
- Power over Ethernet: It is PoE++ compliant according to the IEEE 802.3bt standard, allowing it to deliver both data and significant power to connected devices.
- Integrated LED Indicators: Features two built-in LED light pipes, providing visual status indicators directly on the connector housing.
- Durable and Secure: The connector is built with a robust PBT housing and insert, copper alloy contacts with gold plating, and a secure latch lock mechanism. It is rated for over 1,000 mating cycles, ensuring long-term reliability.
- Wide Compatibility: It is designed to match with the Seetronic SE8MC-1-NEW and SE8MC-02-NEW plugs, as well as any other standard RJ45 plug.
Applications:
Based on its robust specifications, the SE8FAH-C6-LED is perfectly suited for demanding environments that require stable, high-speed network connections, such as:
- Professional Audio/Video Networking
- Data Centers and IT Infrastructure
- Industrial Control and Automation Systems
- Broadcasting and Live Event Production
- Any application requiring a durable, panel-mounted Ethernet solution with PoE++ capabilities.
