Description

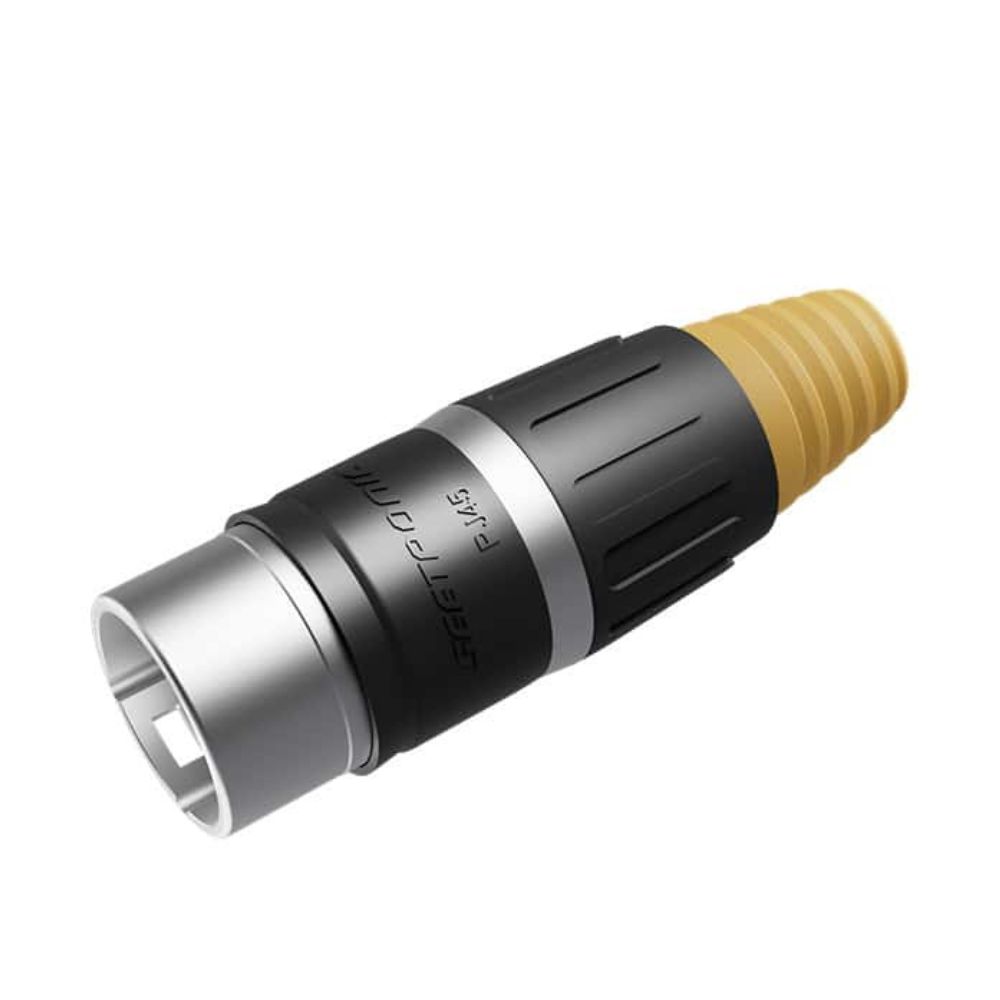

The SE8MC-02-67 IP67 RJ45 Plug is designed for robust performance in harsh and demanding outdoor environments. With its superior waterproof rating of IP67, this RJ45 cable carrier ensures reliable Ethernet connections, even in extreme conditions.
Key Features:
- Sturdy Construction: The plug features a durable die-cast zinc alloy housing, providing protection against mechanical stresses and environmental factors.
- Versatile Compatibility: This connector is compatible with most RJ45 chassis connectors available on the market, making it an ideal choice for various applications.
- Reliable Design: Equipped with a latch lock locking device, this plug maintains a secure connection, ensuring stable performance.
- Wide Cable Compatibility: Designed to accommodate cable outer diameters (OD) ranging from 5mm to 7mm.
- High Performance: With a service life exceeding 1000 mating cycles, this RJ45 plug is built to endure extensive usage without compromising its functionality.
Technical Specifications:
- Connection Type: RJ45
- Gender: Male
- Mechanical Parameters:
- Insertion Force: ≤ 20 N
- Withdrawal Force: ≤ 20 N
- Material:
- Boot: PA
- Housing: Zinc Alloy with Chrome Plating
- Temperature Range: -30°C to +80°C
Packaging:
- Each unit is individually packed, including one boot, cable clamp, and housing.
- 80 units per inner carton and 5 inner cartons per master carton (400 pcs total).
Assembly Instructions:
- Thread the cable through the boot and waterproof cable clamp.
- Assemble the cable with the RJ45 connector.
- Secure the RJ45 within the cable clamp and fasten the cable clip.
- Insert the assembled cable clamp and RJ45 into the housing.
- Tighten the boot clockwise after assembly.
The SE8MC-02-67 IP67 RJ45 Plug is the perfect solution for demanding Ethernet applications, ensuring connectivity in all outdoor conditions.
