SE8MC-02-67-B
Product Features
- RJ45 cable carrier connector with black chromehousing
- Ideal for any harsh and demanding outdoor environment with waterproof rating IP67
- Works withmost RJ45 chassis connectors in the market
- Cable connector carrier does not include RJ45 plug
- Cable OD 5-7 mm
- Sturdy die-cast shell and unique cable clamp
- Sleek design protects Ethernet connections in most commercial type applications and components of standard RJ45 plugs
Details
| Product Parameters | |
| Connection type | RJ45 |
| Gender | Male |
| Mechanical Parameters | |
| Cable OD | 5-7 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Service life | > 1000 mating cycles |
| Locking device | Latch lock |
| Material and Environmental Parameters | |
| Boot | PA |
| Housing | Zinc alloy |
| Housing plating | Black plating |
| Temperature range | -30°C ~ +80°C |
Description

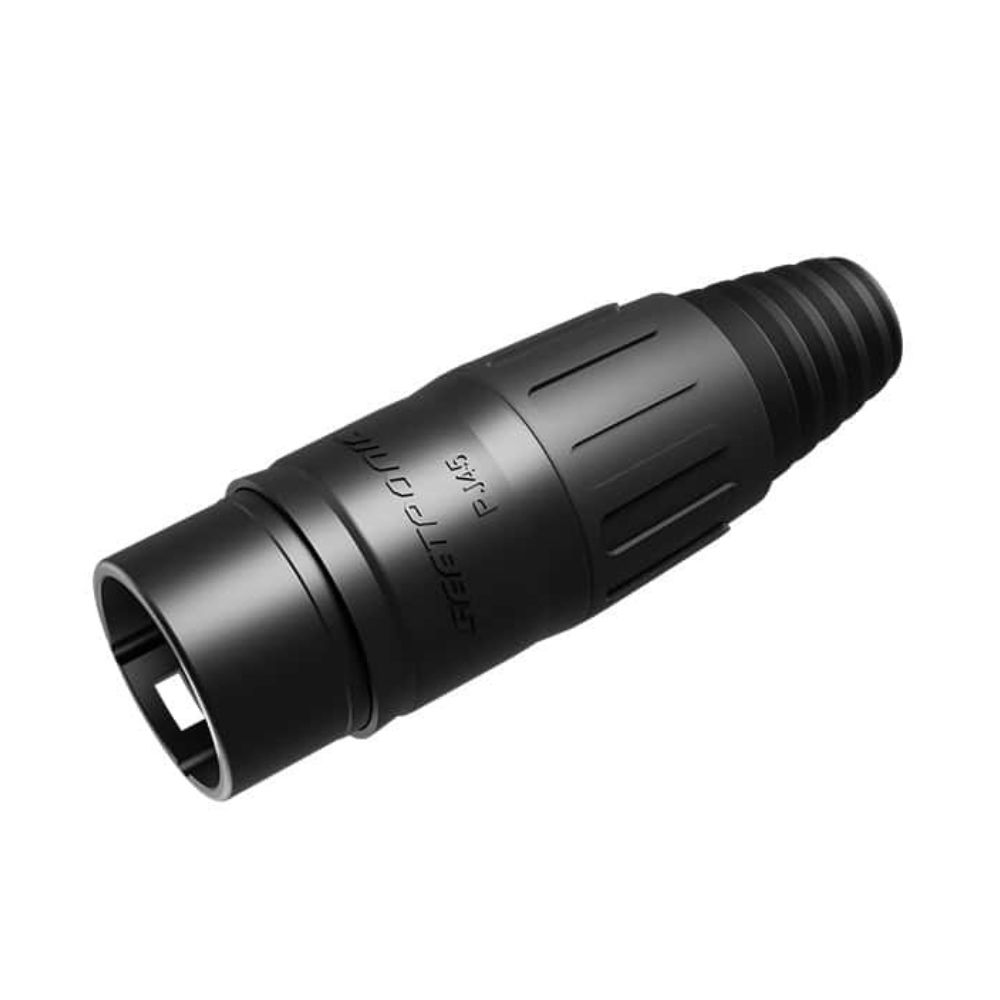

The SE8MC-02-67-B is a high-performance IP67-rated RJ45 plug designed for reliable connectivity in harsh and demanding outdoor environments. This robust connector features a sleek black chrome housing, making it not only durable but also aesthetically pleasing.
Key Features:
- Waterproof Design: With an IP67 waterproof rating, this RJ45 plug ensures protection against dust and water ingress, making it ideal for outdoor applications.
- Versatile Compatibility: Works seamlessly with most RJ45 chassis connectors available in the market, providing flexibility for various setups.
- Sturdy Construction: Crafted with a die-cast zinc alloy shell and reinforced with a unique cable clamp, this connector is built to withstand the rigors of industrial and commercial use.
- Optimal Cable Size: Suitable for cables with an outer diameter of 5-7 mm, accommodating a wide range of Ethernet cable types.
- Locking Mechanism: Equipped with a latch lock locking device to ensure secure connections and prevent accidental disconnection.
Specifications:
- Type: RJ45 Plug
- Gender: Male
- Insertion Force: ≤ 20 N
- Withdrawal Force: ≤ 20 N
- Service Life: Over 1000 mating cycles
- Temperature Range: -30 °C to +80 °C
- Material:
- Boot: PA (Polyamide)
- Housing: Zinc Alloy with Black Plating
Packaging:
The SE8MC-02-67-B is packaged with one unit per bag, including the housing, cable clamp, and boot. In bulk, there are 80 pieces per inner carton with 5 inner cartons per master carton, totaling 400 units per master carton.
Assembly Instructions:
- Thread the cable through the boot and the waterproof cable clamp.
- Assemble the cable with the RJ45 connector.
- Insert the RJ45 into the cable clamp and secure it with the cable clip.
- Push the assembled cable clamp and RJ45 into the housing.
- Tighten the boot in a clockwise direction after assembly.
The SE8MC-02-67-B RJ45 plug is the perfect choice for professionals needing a reliable and weatherproof connection for Ethernet applications. Whether for outdoor networks, industrial installations, or commercial settings, this product guarantees durability and performance.
