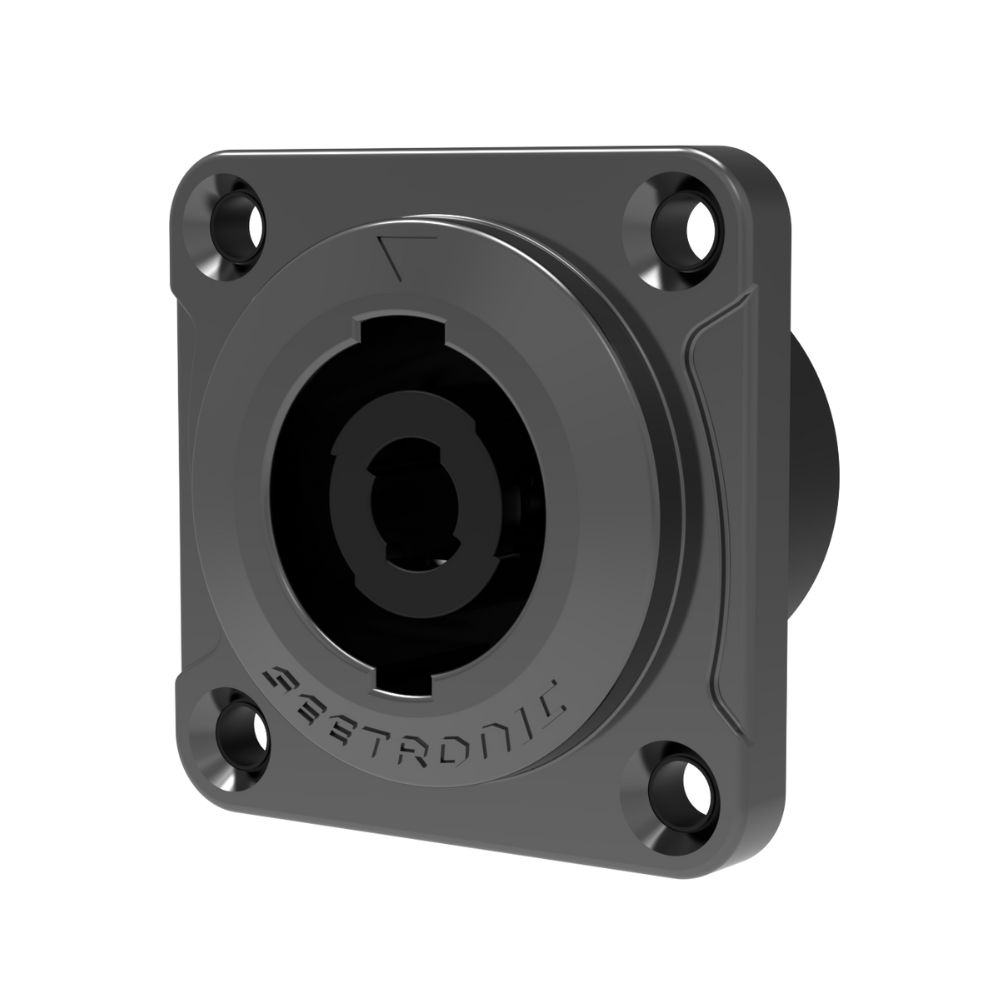

SLDDM4-BC
Product Features
- 4 pole loudspeaker socket, black chromehousing, solder or 1/4″ flat tabs
- Current rating continuous 30 Amp
- Rugged and durable metal housing design
- The built-in sealing gasket provides IP54 protection rating under the mated state
Contact us
Details
| Product Parameters | |
| Connection Type | Speaker |
| Gender | Male |
| Electrical Parameters | |
| Number of Contacts | 4 |
| Rated Current | 30 A rms |
| Rated Voltage | 250V AC |
| Contact Resistance | ≤ 2 mΩ |
| Dielectric Strength | 4 KV DC |
| Insulation Resistance | > 1000 MΩ |
| Attention | Cannot be used as an AC source or power connector! |
| Mechanical Parameters | |
| Service Life | > 5000 mating cycles |
| Material and Environmental Parameters | |
| Housing | Zinc die-cast |
| Housing plating | Black chromium plating |
| Contacts | Cu alloy |
| Contact plating | Ag |
| Inner core | PA |
| Flame-retardant grade | UL 94-V0 |
| Temperature range | -30°C ~ +80°C |
| Standards and Certifications | |
| Standards | IEC 61984 |
Downloads
Description
The SLDDM4-BC is a rugged 4-pole speaker connector designed for high-current audio applications. Encased in a black-chromium plated zinc housing, it combines durability with reliable electrical performance and IP54 protection when mated. This makes it well-suited for professional audio gear, loudspeakers, and other high-current speaker systems demanding sturdy construction and dependable sealing.
Key Features
- Four-pole, male speaker socket with versatile termination options: solder terminals or 6.3 x 0.8 mm blade terminals for quick, secure connections.
- High current capability: rated continuous current of 30 A rms, supporting robust loudspeaker loads.
- Robust construction: metal housing with black chromium plating for corrosion resistance and long service life.
- Sealing and protection: built-in sealing gasket provides IP54 protection in the mated state, helping guard against dust and splashing moisture.
- Fit and finish: zinc die-cast housing with PA inner core; Ag plating on contacts for improved conductivity and longevity.
- Temperature range: operation from -30°C to +80°C, suitable for a wide range of environments.
Mechanical and Mounting Details
- Panel installation: front-mount design with panel cut-out size specified in the drawing section of the datasheet
- Terminals: Soldering or 6.3 x 0.8 mm blade terminations
- Mounting torque: 0.5 Nm recommended for the rear securing screws
Environmental and Compliance
- Sealing: IP54 rating in the mated state
- Certifications and standards noted include IEC 61984 (connector standard relevant to this product category)
- Packaging: PE bag packaging, 1 piece per bag; 50 pieces per inner carton; 5 inner cartons per master carton (250 pieces per master carton)
Usage Notes
- Not intended to act as an AC power source or primary power connector; suitable for speaker signal connections and similar low-voltage, high-current applications within its rated limits.
- When installing, use the recommended torque and tighten direction to ensure the gasket maintains IP54 integrity.
