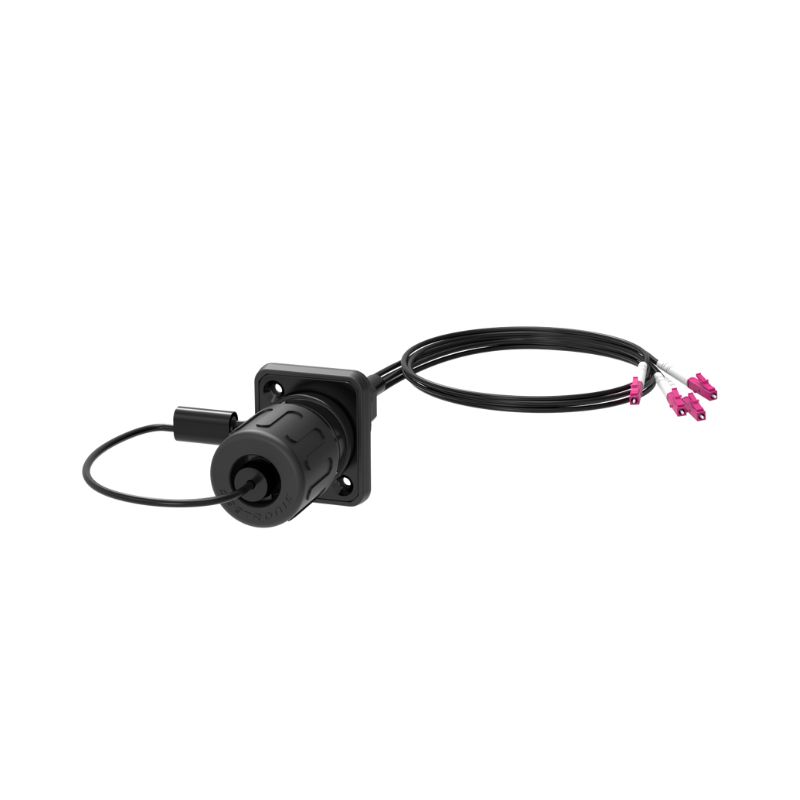

SO4DL Expanded Beam Hermaphroditic Fiber Socket
Compact, rugged expanded-beam fiber socket designed for reliable field and panel installations.
Key benefits
- Hermaphroditic expanded-beam design for simple, reversible mating and reduced alignment sensitivity.
- Front end compatible with MIL‑DTL‑83526 connectors and rear end accepts standard LC connectors for straightforward integration into existing fiber systems.
- Achieves IP68 protection in non‑protected condition for demanding outdoor and industrial environments.
- No special tools required — fast, easy installation and maintenance.
- Available in both single‑mode (SM) Ve multi‑mode (MM) variants.
Typical applications
- Harsh‑environment communications, defense and MIL installations, outdoor networking, and industrial systems where high durability and quick field serviceability are needed.
Packaging & accessories
- Supplied: 1 socket + 1 waterproof gasket per bag; 25 pcs per master carton.
- No accessories included (back fastener plate, screws/nuts or other accessories available separately if required).
Why choose SO4DL
- Combines the resilience and contamination tolerance of expanded‑beam optics with the installation convenience of LC compatibility and MIL standard interfacing. Its long service life, IP68 rating, and broad temperature range make it a dependable choice where uptime and environmental robustness matter.

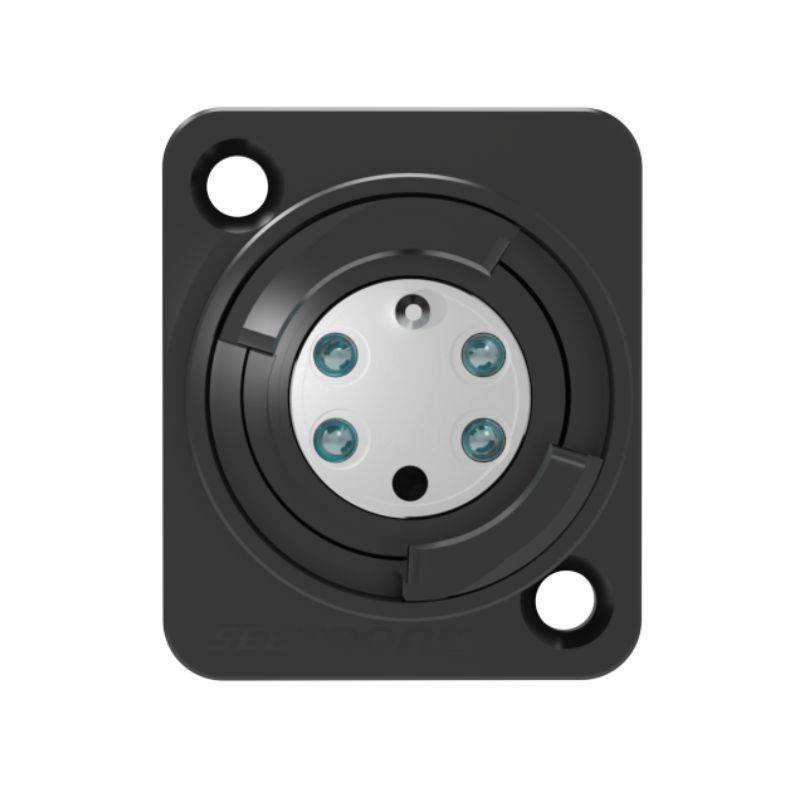

The SO4DL is a 4‑fiber expanded‑beam, hermaphroditic socket built for rugged use, easy installation, and compatibility with MIL‑DTL‑83526 front connections and standard LC rear terminations — offering low typical insertion loss, >10,000 mating cycles, and IP68 environmental protection.
