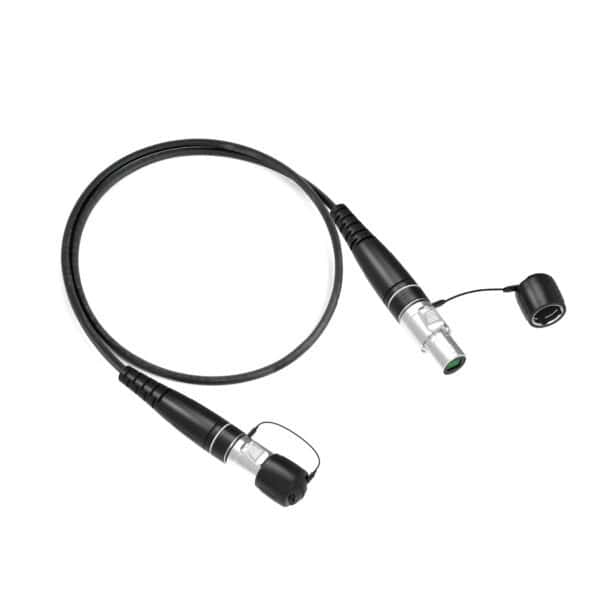

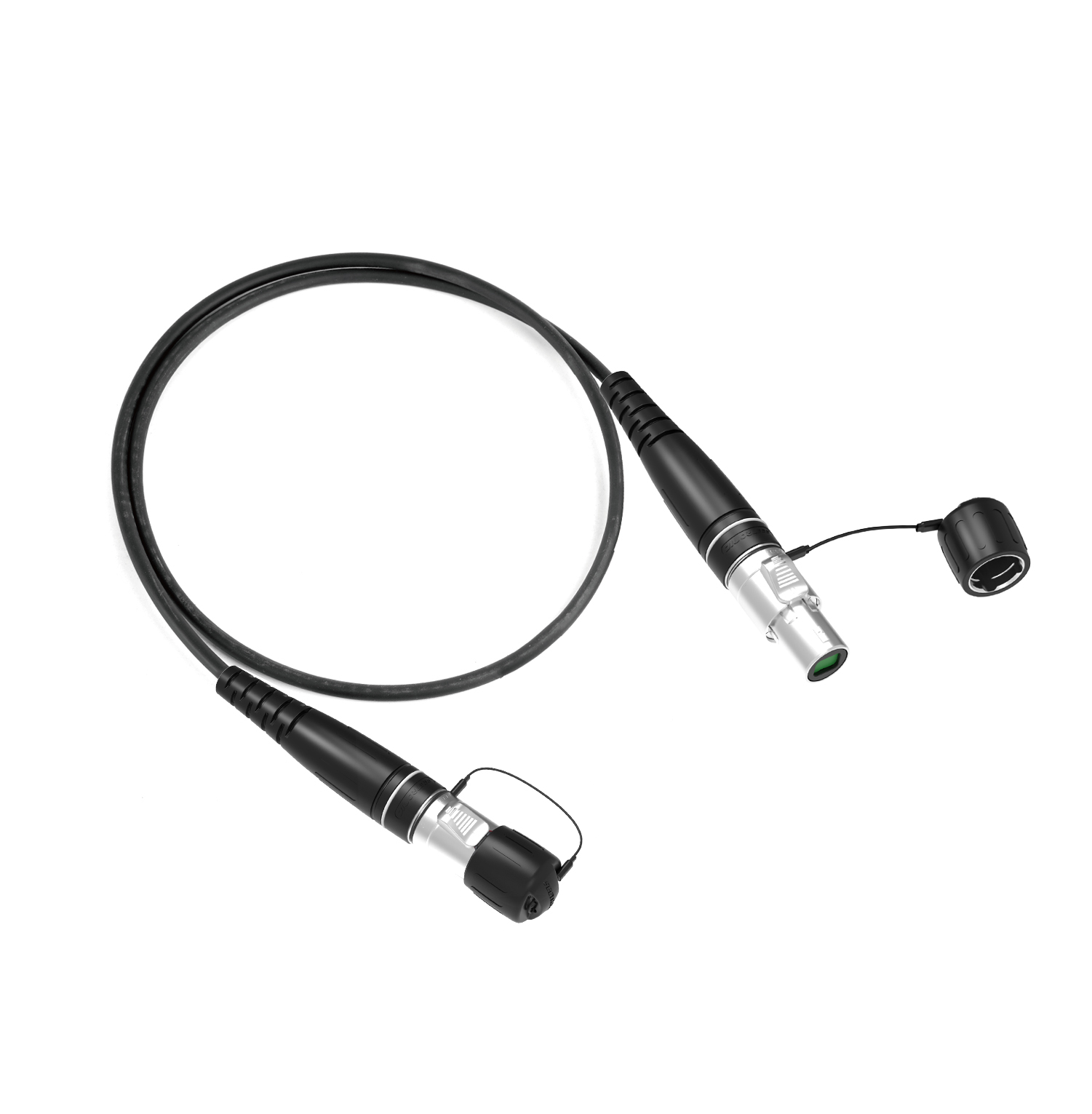

SO4MH 4‑Channel Rugged Optical Fiber Plug
The SO4MH is a pre‑assembled 4‑channel optical fiber plug designed for demanding outdoor and industrial environments. It combines a metal housing and robust mechanical design with a dustproof, flip‑top cap and a reliable push‑pull key locking mechanism to ensure secure, repeatable connections.
Temel Özellikler
- Rugged construction — metal (SUS) housing and stainless steel tube for long service life.
- Dustproof flip‑top cover — automatic protective cap to keep optical interfaces clean when disconnected.
- Push‑pull key locking — dependable, fast mating and un‑mating with an easy push‑pull action.
- Outdoor ready — IP65 protection in the connected state for use in exposed installations.
- LC compatibility — mates with SO4DF or standard LC quad fiber connectors (PC or APC options).
- Pre‑assembled only — delivered with fiber optic cable; the plug is not sold separately.
Typical Applications
- Outdoor fiber links and field distribution boxes
- Telecommunication and data network terminations in harsh environments
- Industrial sites, rail, and other infrastructure with exposed connectors
- Any application requiring a compact 4‑fiber plug with IP65 protection and high mating durability
Packaging & Ordering Notes
- The SO4MH is supplied pre‑assembled with fiber cable; the connector is not available as a standalone purchasable part.
- Cable lengths, fiber type (SM/MM), connector polish (PC or APC), and cable diameter (5 mm or 8 mm) can be customized per order.
- No accessories are included by default (back fastener plate, screws/nuts, or other accessories are optional and must be specified if required).
The SO4MH is a durable, IP65‑rated 4‑fiber plug engineered for outdoor and industrial deployments. It offers LC‑quad compatibility, low insertion loss for both SM and MM fibers, >5,000 mating cycles, and comes pre‑assembled with TPU‑jacketed cable in configurable lengths and diameters. For ordering details and accessory options, contact us.
