The RJ45 connector is key to wired internet and network connections. If you’ve ever plugged in an Ethernet cable, you’ve used one. But what exactly is it? Let’s find out.

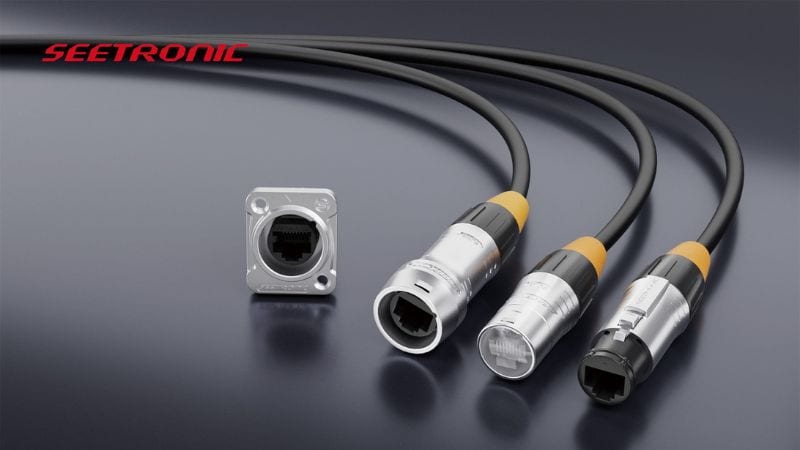

What is an RJ45 Connector?
An RJ45 connector is a standardized physical interface commonly used for terminating twisted-pair cables, primarily in Ethernet networking. The “RJ” stands for Registered Jack, a term originating from the telecommunications industry for standardized network interfaces. The “45” refers to the specific interface standard number.
Essentially, it’s the plastic or metal plug found at the end of most network cables. It features eight pins that connect to eight individual wires within the cable, allowing for the transmission of data signals. Its design includes a small latch or tab that clicks into place when inserted into a corresponding port, ensuring a secure connection.
What is an RJ45 Port?
An RJ45 port is the female counterpart to the RJ45 connector. It’s the socket or jack, typically found on network devices like computers, routers, switches, modems, network interface cards (NICs), and wall plates. This port is designed to receive the RJ45 connector, establishing a physical link for data communication.
When an RJ45 connector is plugged into an RJ45 port, the eight pins on the connector make contact with corresponding conductors within the port, completing the electrical circuit necessary for data transmission.
What is an RJ45 Cable?
An RJ45 cable is, quite simply, a cable terminated at one or both ends with an RJ45 connector. The most common type of RJ45 cable is an Ethernet cable. These cables consist of four pairs of twisted copper wires (totaling eight wires) encased in an outer jacket. The twisting of the wire pairs helps to reduce electromagnetic interference (EMI) and crosstalk, ensuring signal integrity over distances.
While “RJ45 cable” and “Ethernet cable” are often used interchangeably, it’s important to note that RJ45 connectors can technically be used for other types of network connections, though Ethernet is by far the most prevalent application.
What is an RJ45 Connector Used For?
The primary and most well-known use of RJ45 connectors is in Ethernet networking. They are the standard for wired Local Area Networks (LANs), connecting devices such as:
- Computers and laptops to routers or modems
- Network switches to routers
- Printers and network-attached storage (NAS) devices to the network
- IP cameras and VoIP phones
Beyond traditional data networking, RJ45 connectors and compatible cabling (like Cat5e or Cat6) are sometimes used in other applications, including:
- Telecommunications (though less common now for phone lines which traditionally used RJ11)
- Industrial automation systems
- Audio and video transmission over Ethernet (e.g., HDBaseT)
However, their core identity remains firmly rooted in enabling reliable, high-speed wired internet and network access.
RJ45 Connector Components
A standard RJ45 connector is a marvel of simple yet effective engineering. Its main components include:
- Housing: The main body of the connector, usually made of clear or colored plastic (though metal-shielded versions exist). It holds all other components in place.
- Pins/Contacts: Eight gold-plated copper contacts (pins) are precisely positioned within the housing. These pins pierce the insulation of the individual wires inside the cable during crimping, establishing an electrical connection. Gold plating is used to resist corrosion and ensure good conductivity.
- Strain Relief Latch/Tab: A flexible plastic tab on the top or bottom of the connector that secures it within an RJ45 port. Pressing this tab releases the connector.
- Cable Entry Point: The rear opening where the network cable is inserted before crimping. Some connectors also include an internal load bar or wire guide to help align the wires correctly.
RJ45 Color Codes
To ensure proper communication, the eight wires within an Ethernet cable must be arranged in a specific order before being inserted into the RJ45 connector and crimped. Two standard color-coding schemes are used: T568A and T568B.
Key Points on Color Codes:
- Straight-Through Cable: If both ends of a cable are wired using the same standard (e.g., T568B on both ends), it’s a straight-through cable. This is the most common type, used to connect a device (like a computer) to a switch or router.
- Crossover Cable: If one end is T568A and the other is T568B, it’s a crossover cable. These were historically used to connect two similar devices directly (e.g., computer to computer or switch to switch) without a hub or router in between. However, modern network interfaces often feature Auto MDI-X, which automatically detects the cable type and adjusts, making crossover cables largely obsolete for most users.
- While both standards work, T568B is more commonly used in the US and for new installations. Consistency within a network is crucial.
Types of RJ45 Connectors
RJ45 connectors come in various types, primarily differing based on shielding, cable compatibility, and ease of use:
- Unshielded (UTP) Connectors: Designed for use with Unshielded Twisted Pair (UTP) cables. These are the most common and cost-effective type, suitable for most home and office environments where EMI is not a significant concern.
- Shielded (STP/FTP) Connectors: These connectors have a metal casing or shielding that connects to the shield of a Shielded Twisted Pair (STP) or Foiled Twisted Pair (FTP) cable. They provide better protection against EMI and are used in environments with high electrical noise, such as industrial settings or near powerful electrical equipment.
- Category-Specific Connectors (Cat5e, Cat6, Cat6a, Cat7, Cat8): Connectors are designed to match the performance characteristics of different Ethernet cable categories.
- Cat5e connectors: Support speeds up to 1 Gbps.
- Cat6 connectors: Support speeds up to 10 Gbps over shorter distances (up to 55 meters), with improved crosstalk performance. They often have internal features to separate the pairs more effectively.
- Cat6a connectors: Support 10 Gbps up to 100 meters and are better shielded.
- Cat7/Cat8 connectors: Designed for even higher frequencies and speeds (25 Gbps or 40 Gbps for Cat8), often with more robust shielding. These are less common in typical home/office setups and may use different connector types like GG45 or TERA, though RJ45-compatible versions exist. It’s crucial to use connectors that match or exceed the cable category for optimal performance.
- Pass-Through RJ45 Connectors: These innovative connectors allow the wires to pass completely through the connector and out the front. This makes it easier to verify the correct wire order before crimping and can lead to more reliable connections as the twists can be maintained closer to the contacts. The excess wire is trimmed off after crimping.
- Toolless RJ45 Connectors: Designed for termination without a dedicated crimping tool. They typically have a hinged mechanism or a snap-fit design that secures the wires. While convenient for quick field repairs or for users without crimping tools, they can be bulkier and more expensive.
- Field Terminable RJ45 Connectors: Similar to toolless connectors, these are designed for easy termination in the field, often with robust, reusable designs, and may include features for specific cable types like industrial Ethernet.
Advantages and Disadvantages of RJ45 Connectors
Like any technology, RJ45 connectors have their pros and cons:
Advantages:
- Ubiquity and Standardization: They are globally recognized and used, ensuring widespread compatibility between devices and network equipment.
- Cost-Effectiveness: RJ45 connectors and associated cables are relatively inexpensive to manufacture and purchase.
- Ease of Use: Connecting and disconnecting is straightforward, thanks to the latching mechanism.
- DIY Friendly: With the right tools and knowledge (see crimping section), users can make their own custom-length cables.
- Good Performance for Most Applications: Modern RJ45 connectors (e.g., Cat6a) can support high speeds (up to 10 Gbps) suitable for most home and many business needs.
Disadvantages:
- Fragility of the Latch: The plastic retaining tab can break off if mishandled, leading to a loose connection.
- Susceptibility to EMI (for UTP): Unshielded connectors and cables can be affected by electromagnetic interference if not properly installed or if used in noisy environments.
- Distance Limitations: Ethernet over copper (using RJ45) has a maximum distance limitation of around 100 meters (328 feet) for optimal performance, after which a repeater or switch is needed.
- Bulkier than some alternatives: Compared to fiber optic connectors or USB, RJ45 connectors are relatively larger.
- Limited Bandwidth Compared to Fiber: While capable, copper-based Ethernet with RJ45 cannot match the sheer bandwidth and distance capabilities of fiber optic connections.
Crimping an RJ45 Connector
Crimping an RJ45 connector onto an Ethernet cable is a common task for network technicians and DIY enthusiasts. It requires a few tools: an Ethernet cable, RJ45 connectors, a crimping tool (with an RJ45 die), and a cable stripper/cutter. A cable tester is also highly recommended.
Here’s a general step-by-step guide:
- Strip the Cable Jacket: Carefully strip about 1-1.5 inches of the outer jacket from the end of the Ethernet cable using the cable stripper. Be cautious not to nick the insulation of the individual wires.
- Untwist and Arrange Wires: Untwist the wire pairs. You’ll have eight individual wires. Flatten them out and arrange them in the correct order according to your chosen standard (T568A or T568B). Ensure they are flat, parallel, and in the correct sequence.
- Trim the Wires: Holding the wires firmly in order, trim them to about 0.5 inches from the base of the stripped jacket, ensuring the ends are perfectly even. The length should allow the cable jacket to be securely inserted into the back of the RJ45 connector for strain relief.
- Insert Wires into Connector: Carefully insert the ordered wires into the RJ45 connector. Ensure each wire goes into its designated channel and reaches the end of the connector, making contact with the internal pins. The cable jacket should also go slightly inside the connector.
- For pass-through connectors: Wires will extend out the front.
- Verify Wire Order: Double-check the wire order through the clear plastic of the connector. This is a critical step.
- Crimp the Connector: Insert the connector (with the cable) into the RJ45 slot of the crimping tool. Squeeze the tool handles firmly and completely until you hear a ratchet click (if your tool has one) or feel it bottom out. This action does two things:
- Pushes the gold-plated pins down, piercing the wire insulation to make contact.
- Secures the cable jacket to the connector for strain relief.
- For pass-through connectors: The crimp tool will also trim the excess wires protruding from the front. If not, trim them manually after crimping.
- Test the Cable: Use an Ethernet cable tester to verify that all eight wires are correctly connected and that there are no shorts or open circuits.
Repeat the process for the other end of the cable, ensuring you use the correct wiring standard (same for straight-through, opposite for crossover if needed).
Troubleshooting RJ45 Connections
If you’re experiencing network connectivity issues, the RJ45 connection might be the culprit. Here are some common troubleshooting steps:
- Check Physical Connections:
- Ensure the RJ45 connector is securely plugged into the port on both ends. Listen for the “click” of the latch.
- Inspect the connector for any physical damage, like a broken latch or bent pins.
- Inspect the RJ45 port for dust, debris, or damaged pins. Clean gently with compressed air if necessary.
- Examine the Cable:
- Look for visible damage to the cable itself, such as kinks, cuts, or excessive bends.
- If it’s a self-crimped cable, verify the wire order (T568A/T568B) is correct and consistent. A poorly crimped connector is a very common issue.
- Test with a Different Cable/Port:
- Try a known-good Ethernet cable to see if the problem persists. This helps isolate whether the issue is with the cable or the devices.
- If possible, try a different RJ45 port on your router, switch, or computer.
- Use a Cable Tester:
- For homemade or suspect cables, a cable tester can quickly identify problems like incorrect wiring, open circuits (broken wire), short circuits (wires touching), or split pairs.
- Check Link Lights:
- Most network devices have LED indicators (link lights) near the RJ45 port. A solid or blinking green/amber light usually indicates a good physical connection. No light or an unusual color might indicate a problem.
- Software/Driver Issues:
- Ensure your network adapter drivers are up to date.
- Check network configuration settings on your computer.
- Re-crimp if Necessary: If you suspect a bad crimp on a homemade cable, the best solution is often to cut off the old connector and crimp a new one.
Conclusion
The RJ45 connector, though small, is a cornerstone of modern wired networking. Its standardized design, relative ease of use, and ability to support increasingly high data rates have cemented its place in homes, offices, and data centers worldwide.
