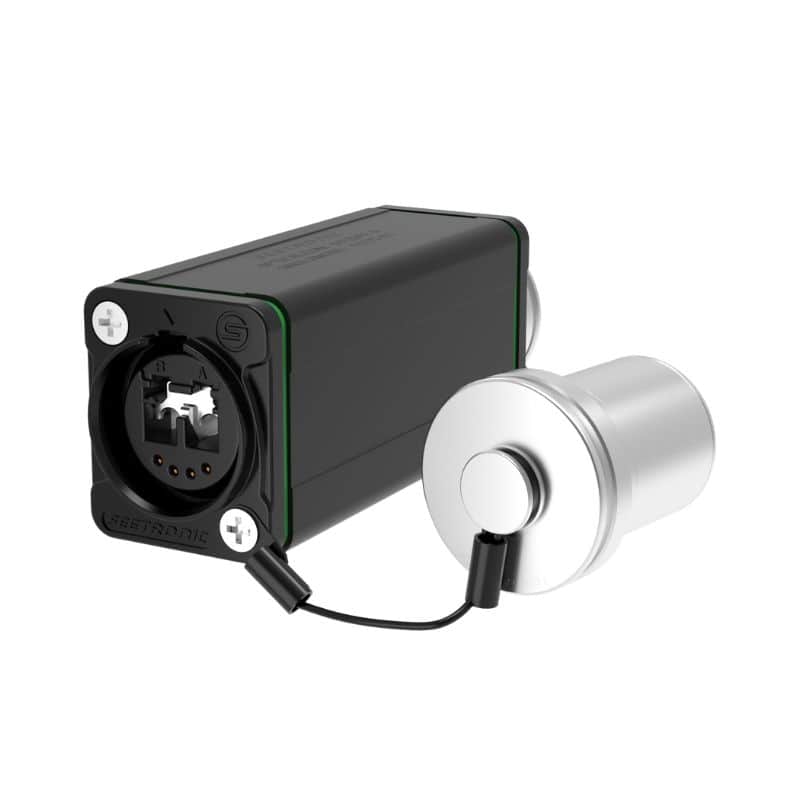

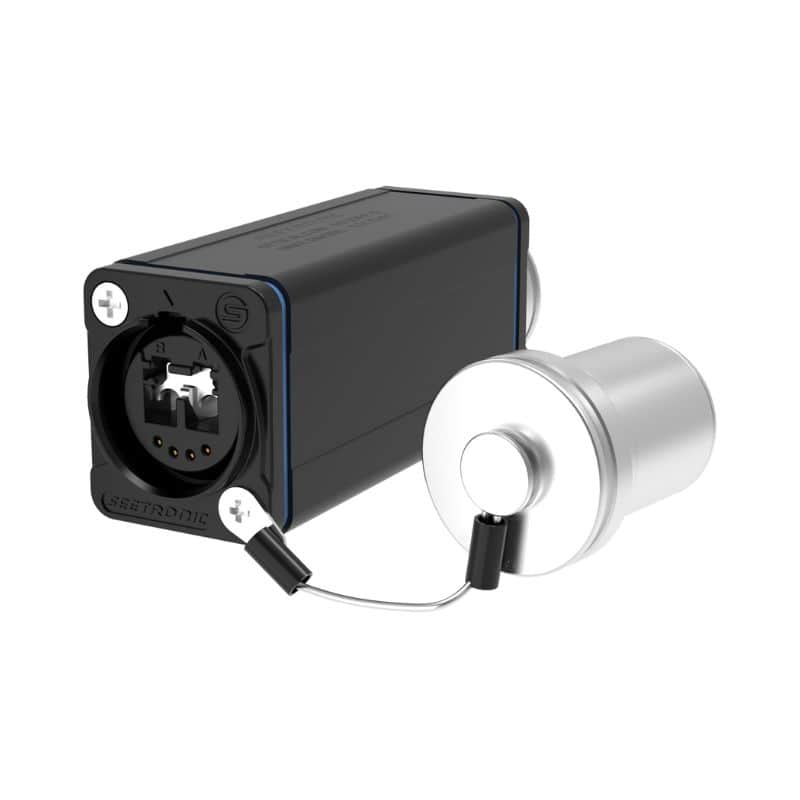

SO2DFF-S

Product Features

  • Robust and reliable dual-channel fiber coupler
  • Based on LC-Duplex connectors and compatible to conventional single-mode LC connectors
  • It can achieve IP65 waterproof grade when used with SO2M plug
  • Feed-through connection with automatic sealing shutter
Model: SO2DFF-SCategories: Optical Fiber, Optical Fiber Coupler
Contact us

Details

Product Parameters
Connection type Coupler
Gender Female-to-Female
Connector type Single-mode PC
Electrical Parameters
Contact resistance < 7 mΩ
Rated current 6 A
Rated voltage < 50 V
Dielectric strength 1.5 kV dc
Insulation resistance > 2 GΩ (initial)
Rated current per contact Contact 1+4, 9 A, Contact 2+3, 6 A
Mechanical Parameters
Service Life > 1000 mating cycles
Insertion Force < 45 N
Locking Device Push-pull
Material and Environmental Parameters
Housing Aluminum alloy
Split sleeve Ceramics
Insert PA66
Contacts Bronze
Contact plating Au
Temperature range -30℃ ~ +80℃
Optical Properties
Insertion loss < 0.4dB@1310nm/1550nm
Optical connector LC-Duplex

Downloads

SO2DFF-S Data Sheet

Description

SO2DFF-S Dual‑Channel Optical Fiber Coupler (LC‑Duplex)

The SO2DFF-S is a robust, reliable dual‑channel optical fiber coupler designed for single‑mode networks that use LC‑Duplex connectors. Engineered for demanding field and industrial environments, the unit provides feed‑through connection with an automatic sealing shutter and can achieve an IP65 waterproof rating when mated with the SO2M plug.

Key Features

  • Dual‑channel, feed‑through coupler for LC‑Duplex single‑mode connections
  • Compatible with conventional single‑mode LC connectors
  • Automatic sealing shutter for protection of unused ports
  • Achieves IP65 waterproof grade when used with SO2M plug
  • Push‑pull locking for quick, secure mating

Packaging & Accessories

  • Packed with pearl cotton protective packaging; one product per small box
  • Standard delivery: no accessories included (optional accessories such as back fastener plate, screws & nuts listed as available but not supplied)

Installation / Usage Notes

Remove the stainless‑steel dust cover, insert an SO2M connector into one side of the SO2DFF‑S, then repeat on the opposite side to complete the fiber cable connection. The automatic sealing shutter protects unused ports during installation.

The SO2DFF‑S is a compact, durable LC‑Duplex fiber coupler optimized for single‑mode applications where low insertion loss, environmental protection (IP65 with SO2M), and reliable mechanical performance (push‑pull locking, >1,000 mating cycles) are required.
