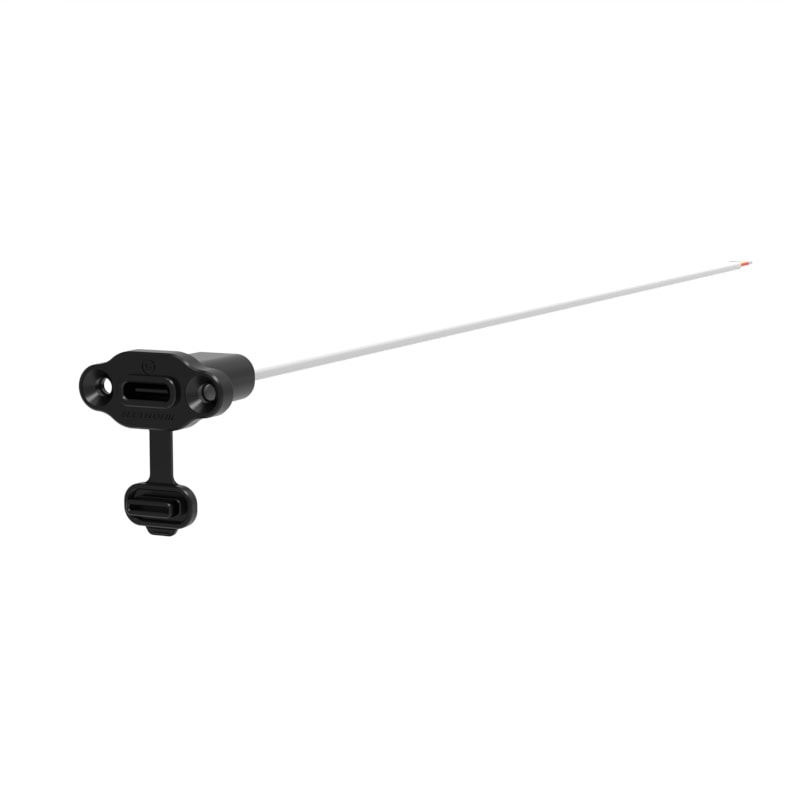

SCCMCDF-04
Product Features:
- USB-C connector to cable harness components
- 24P full-core Type-C interface on the front connected to a 6P flexible cable at the rear
- Two-way fast charging mode that supports 100W output power and can operate continuously under 20V/5A conditions
- IP65 waterproof and airproof
- Meets standard USB 2.0，and support charging and data transmission functions under the condition of polarity distinction.
Details
| Product parameters | |
| Connection Type | USB-C Socket |
| Gender | Female |
| Electrical Parameters | |
| Contacts No. | 24 |
| Contact resistance | ≤ 50 mΩ |
| Output power | 100W Max |
| Mechanical Parameters | |
| Service life | > 10000 mating cycles |
| Material and Environmental Parameters | |
| Contacts | Cu alloy |
| Contact plating | Au |
| Housing | PA |
| Flame-retardant grade | UL 94V-0 |
| Temperature range | -40°C ~ +80°C |
| Standards and Certifications | |
| Standards | USB2.0 |
Downloads
Description
Meet the SCCMCDF-04, a robust and high-performance USB-C socket designed for seamless power and data integration. This component is engineered for reliability in demanding environments, making it an ideal choice for a wide range of applications.
High-Power, Two-Way Fast Charging
Engineered for modern power needs, the SCCMCDF-04 supports a powerful two-way fast charging mode. It can deliver up to 100W of output power and operates continuously and reliably under 20V/5A conditions, ensuring your devices get the power they need, quickly and safely.
Built for Durability and Tough Environments
The SCCMCDF-04 is not just powerful, but also exceptionally durable.
- IP65 Rated: It offers excellent protection against dust and water, making it suitable for use in harsh conditions.
- Wide Temperature Range: With an operating temperature range from -40°C to +80°C, this socket performs consistently in extreme climates.
- Long-Lasting: The connector is built for a long service life, rated for over 10,000 mating cycles.
Key Specifications:
- Connection Type: USB-C Female Socket
- Interface: 24-pin full-core Type-C front interface with a 6-pin flexible cable at the rear.
- Data Transfer: Complies with the USB 2.0 standard for reliable data transmission.
- Contact Resistance: ≤50 mΩ for a stable and efficient connection.
- Materials: Features gold-plated copper alloy contacts for superior conductivity and corrosion resistance, housed in a durable PA (Nylon) shell with a UL 94-V0 flame-retardant rating.
The SCCMCDF-04 USB-C socket provides a reliable, high-power solution for both charging and data transfer, all within a durable and environmentally resistant package.
