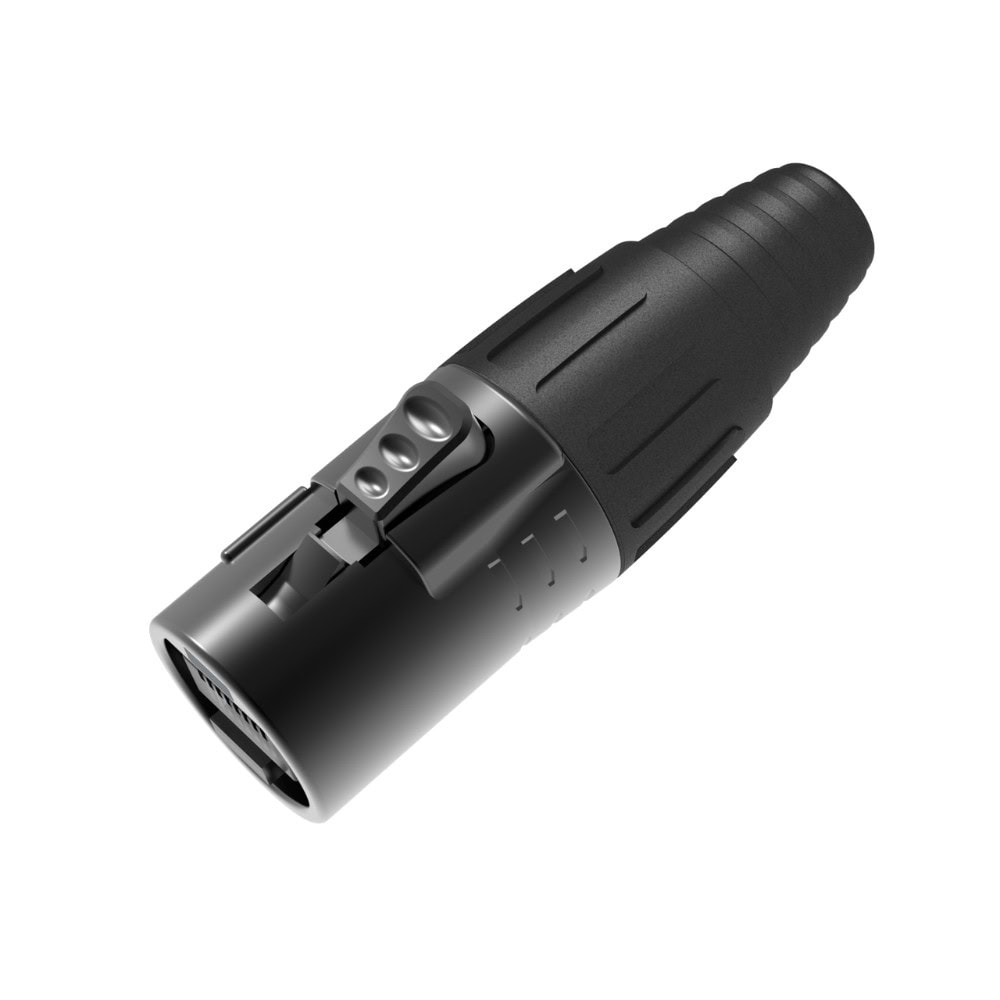

SE8MC-05-B-01-NEW
Product Features
- This waterproof RJ45 system is an upgraded version of SE8MC-02-NEW with a waterproof rating of IP65
- RJ45 cable carrier connector with chrome housing
- This RJ45 plugcan only be used with our 05 series connectors, not compatible with other RJ45 connector
- Cable connector carrier does not include RJ45 plug
- Cable O.D. 5-7mm
- Exceptionally quick plugging and unplugging with one-hand operation which saves time compared to traditional waterproof RJ45 cable connectors in the market
- Push button lock is designed on the plug with a sturdy spring inside. Even if the spring breaks, it can be unlocked which is more stable than traditional signal connectors in the market
- Sturdy die-cast housingand unique cable clamp
- Sleek design protects Ethernet connections in most commercial type applications and components of standard RJ45 plugs
Contact us
Details
| Product Parameters | |
| Connection Type | RJ45 |
| Gender | Male |
| Mechanical Parameters | |
| Cable OD | 5-7 mm |
| Insertion force | ≤ 40 N |
| Withdrawal force | ≤ 40 N |
| Service life | > 1000 mating cycles |
| Locking device | Latch lock |
| Material and Environmental Parameters | |
| Boot | PA |
| Housing | Zinc alloy |
| Housing plating | Black coating |
| Push button | Zinc alloy |
| Protection degree | IP65 |
| Temperature range | -30°C ~ +80°C |
Downloads
Description
The SE8MC-05-B-01-NEW is an advanced IP65 waterproof RJ45 plug designed for demanding commercial and outdoor applications. With a high protection rating of IP65, a chrome-plated die‑cast zinc housing and a one‑hand quick‑release design, this plug provides reliable protection for Ethernet connections in harsh environments while enabling fast, secure installation.
Key Features:
- Upgraded design: Enhanced version of SE8MC-02-NEW with improved waterproofing and durability.
- Connector type: RJ45 male cable carrier (plug) — intended for use with the Seetronic 05 series only (not compatible with other RJ45 systems).
- Cable compatibility: Suitable for cable outer diameter 5–7 mm.
- Quick operation: Exceptionally fast plugging and unplugging with one‑hand operation, saving installation time versus traditional waterproof RJ45 connectors.
- Secure latch: Push‑button latch on the plug with a sturdy internal spring; the design still allows unlocking even if the spring fails, offering greater reliability than many traditional signal connectors.
- Robust construction: Die‑cast zinc housing with unique cable clamp for a secure connection and protection of standard RJ45 plug components.
- Protective styling: Sleek protective design suitable for commercial applications.
Technical Specifications:
- Connection Type: RJ45 (male)
- Cable O.D.: 5–7 mm
- Insertion Force: ≤ 40 N
- Withdrawal Force: ≤ 40 N
- Service Life: > 1000 mating cycles
- Locking Device: Latch (push‑button)
Material and Environmental Specifications:
- Boot (tail cover): PA (Polyamide / Nylon)
- Housing: Zinc alloy
- Housing Plating / Finish: Black coating (chrome/black plated finish as specified)
- Push Button: Zinc alloy
- Protection Degree: IP65
- Operating Temperature Range: -30°C to +80°C
Packaging and Accessories：
- Packaging Method: 1 pc per bag (each bag includes 1 housing, 1 cable clamp and 1 boot)
- Carton Quantities: 80 pcs per inner carton; 5 inner cartons per master carton — 400 pcs per master carton
- Accessories: No accessories included by default. Optional accessories (available separately) may include back fastener plate, screws & nuts, etc.
Assembly Instructions：
- Thread the cable through the boot and the waterproof cable clamp (tail sleeve and clamp).
- Assemble the RJ45 (terminate the cable with the RJ45 plug/crystal head).
- Insert the RJ45 into the cable clamp and fasten the cable clip: ensure the A1 and B1 sides of the RJ45 correspond to the A2 and B2 sides of the cable clip; press the RJ45 sheeting into the cable clip block.
- Close the cable clamp.
- Push the assembled cable clamp (with RJ45) into the housing.
- After assembly, tighten the boot in a clockwise direction to complete the waterproofing seal.
The SE8MC-05-B-01-NEW is a compact, rugged IP65-rated RJ45 plug engineered for quick, one‑hand installation and long‑term reliability in outdoor and industrial settings. It is supplied as a housing + clamp + boot (RJ45 plug not included) and is compatible only with Seetronic’s 05 series connectors.
