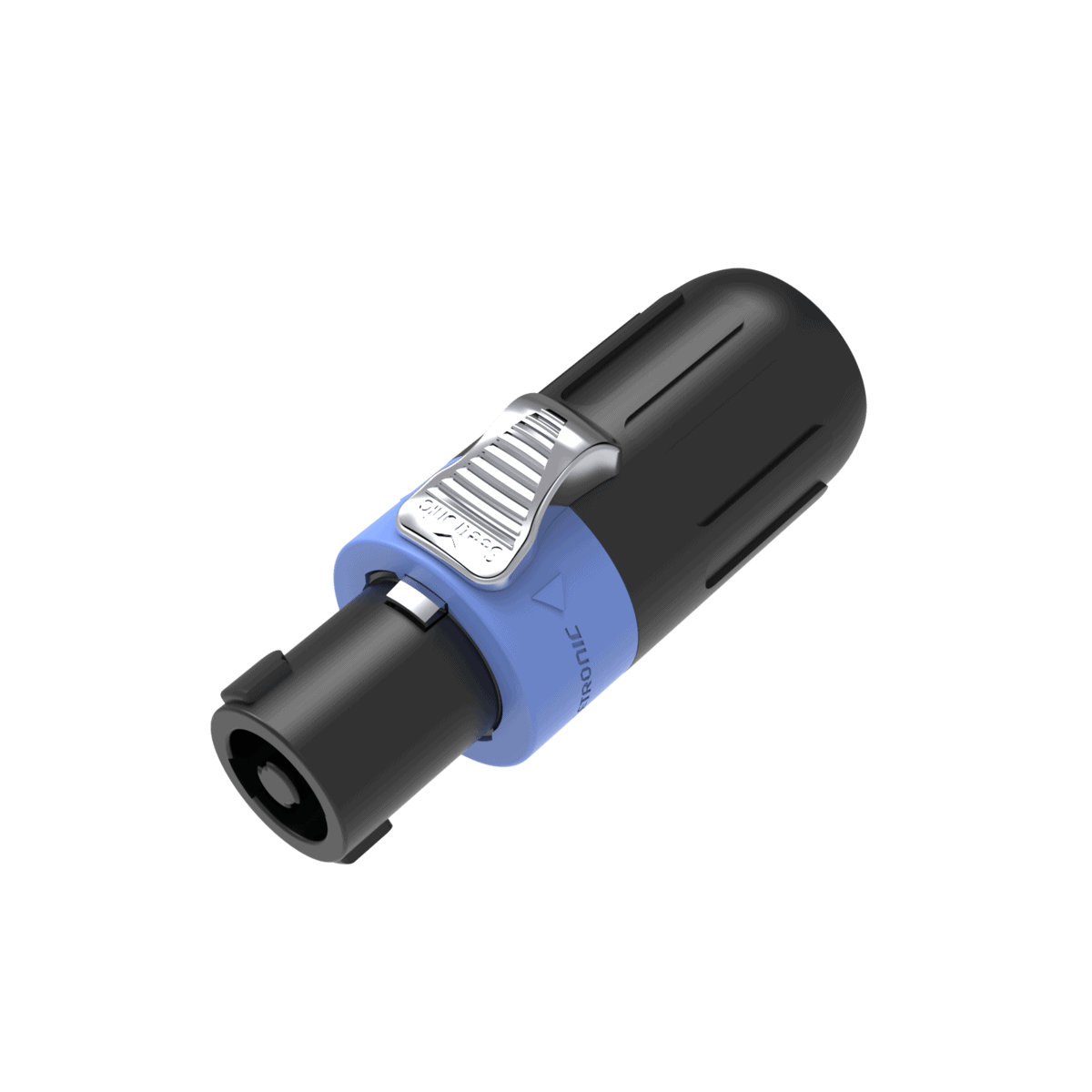

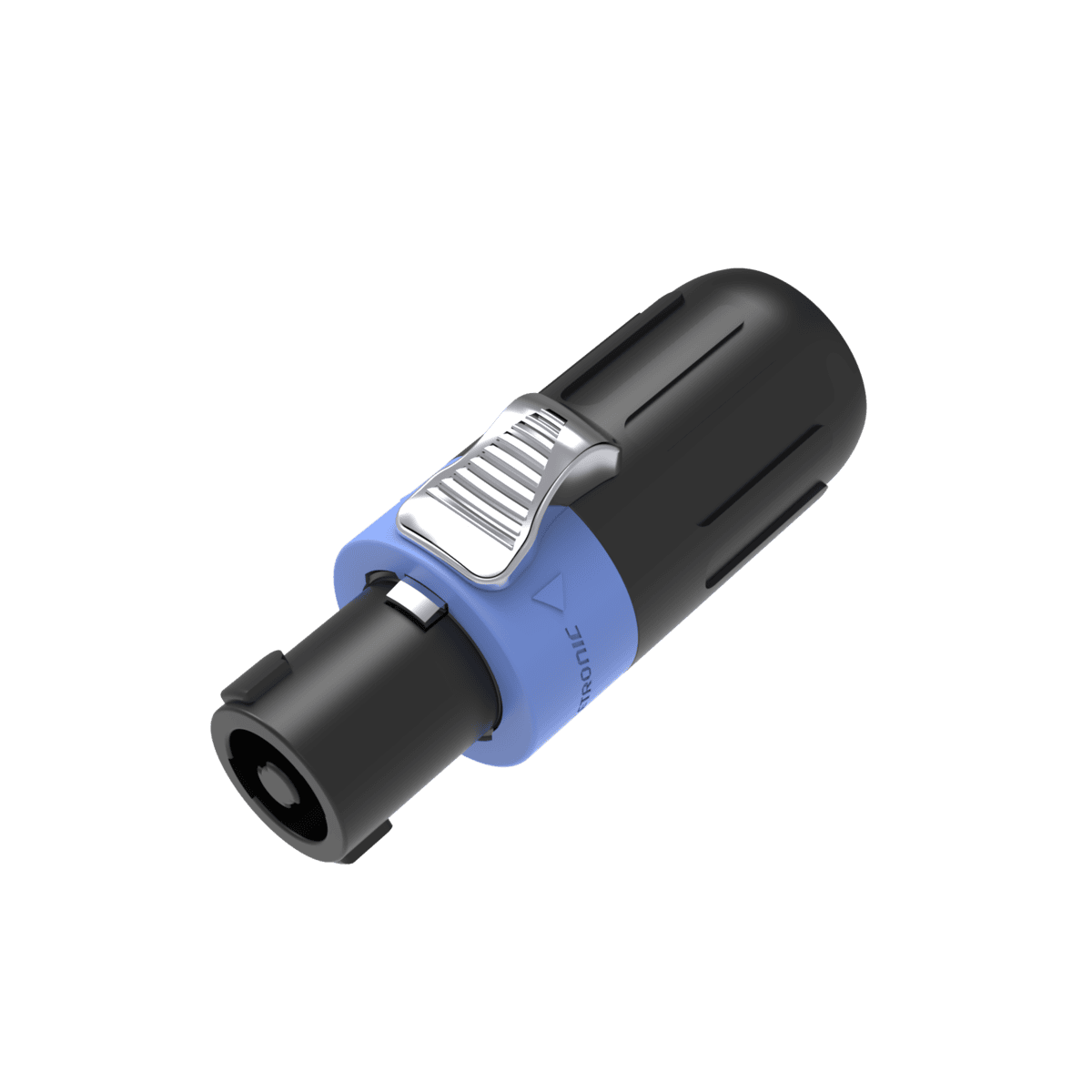

SL4FX-N2
Product Features
-
Stable High-Current Performance: Rated at 40 A rms continuous current for reliable performance in professional speaker connection applications.
-
Built for Demanding Use: High-impact housing materials help ensure long-term durability in frequent assembly and operating environments.
-
Fast and Efficient Assembly: The 3-part construction simplifies installation and helps reduce assembly time in field applications.
-
Secure Cable Retention: Integrated strain relief design supports stable cable clamping for 7–14.5 mm outer diameter cables.
-
Reliable Electrical Contact: Low contact resistance and silver-plated copper alloy contacts help maintain consistent conductivity.
Details
| Product Parameters | |
| Connection type | Speaker |
| Gender | Female |
| Electrical Parameters | |
| Number of contacts | 4 |
| Rated current | 40A rms |
| Rated voltage | 250 V |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 2.8 KV AC |
| Insulation resistance | > 1000 MΩ |
| Attention | Cannot be used as an AC source or power connector! |
| Mechanical Parameters | |
| Service life | > 1000 mating cycles |
| Power cable diameter | 2.5 mm² (7mm -14.5mm) |
| Material and Environmental Parameters | |
| Housing | PA66 |
| Contacts | Cu alloy |
| Contact plating | Ag |
| Inner core | PA |
| Thread clamp set | POM |
| Flame-retardant grade | UL 94-V0 |
| Temperature range | -30°C ~ +80°C |
| Standards and Certifications | |
| Standards | IEC 61984 |
Downloads
Description
The SL4FX-N2 is a 4-pole female speaker connector engineered for professional audio cable termination and stable signal transmission in demanding connection environments. It features a compact 3-part assembly structure, a strain relief system for 7–14.5 mm cable outer diameters, and a high-impact housing design for long-term operational reliability. With a rated current of 40 A rms, rated voltage of 250 V, and compliance with IEC 61984, this connector is suitable for professional loudspeaker connection applications where secure mating performance and mechanical durability are required.
Key Features
-
4-Pole Configuration: Designed with 4 contacts for professional speaker connection applications.
-
Rated Current: Supports 40 A rms continuous current under specified operating conditions.
-
Simplified Construction: 3-part housing design improves assembly efficiency and reduces installation complexity.
-
Cable Range: Integrated strain relief chuck accommodates cable outer diameters from 7 mm to 14.5 mm.
-
Improved Handling: Optimized latch grip supports easier insertion, locking, and release during operation.
-
Electrical Reliability: Contact resistance is controlled at ≤ 5 mΩ to support stable conductive performance.
Material and Environmental Specifications
-
Housing Material: PA66 housing provides strong mechanical strength and impact resistance.
-
Contact Plating: Silver-plated contact surfaces help maintain efficient electrical transmission.
-
Inner Core Material: PA nylon inner core contributes to dimensional stability and internal support.
-
Flame Retardancy: UL 94-V0 rated materials improve safety performance in demanding installation conditions.
-
Operating Temperature: Suitable for ambient operating temperatures from -30°C to +80°C.
-
Standards Compliance: Conforms to IEC 61984 for connector safety requirements and testing.
Packaging and Accessories
-
Primary Packaging: Supplied in PE bag packing with 1 piece per bag.
-
Inner Carton Quantity: Standard packing is 50 pieces per inner carton.
-
Master Carton Quantity: 5 inner cartons per master carton, for a total of 250 pieces.
-
Standard Accessories: No accessories are included in the default configuration.
-
Optional Accessory Status: Back fastener plate, screws and nuts, and other accessory options are listed but not selected in this specification.
Assembly Instructions
-
Cable Preparation: Pass the cable through the boot sleeve and clamp before terminal assembly.
-
Cable Stripping: Strip the cable according to the dimensional requirement shown in the specification sheet.
-
Conductor Termination: Insert the conductor into the inner core terminal and tighten the screw to 0.7 Nm torque.
-
Clamp Positioning: Slide the clamp upward and snap it onto the assembled inner core.
-
Final Locking: Screw the boot into the housing and tighten clockwise to complete the assembly.
Application Notes
-
Professional Audio Use: Intended for loudspeaker cable connection in professional audio systems.
-
Mechanical Stability: High-impact materials and secure cable clamping help maintain connection stability during repeated handling.
-
Installation Efficiency: The simplified structural design supports faster field assembly and maintenance work.
