SL8MPRXX-W
Product Features
- Stable High Current Performance: Rated at 30 A rms continuous current for reliable performance in professional 8 pole speaker connection applications.
- Built for Demanding Use: Robust zinc alloy housing with pearl nickel plating delivers long term durability for repeated mating cycles up to over 5000 times.

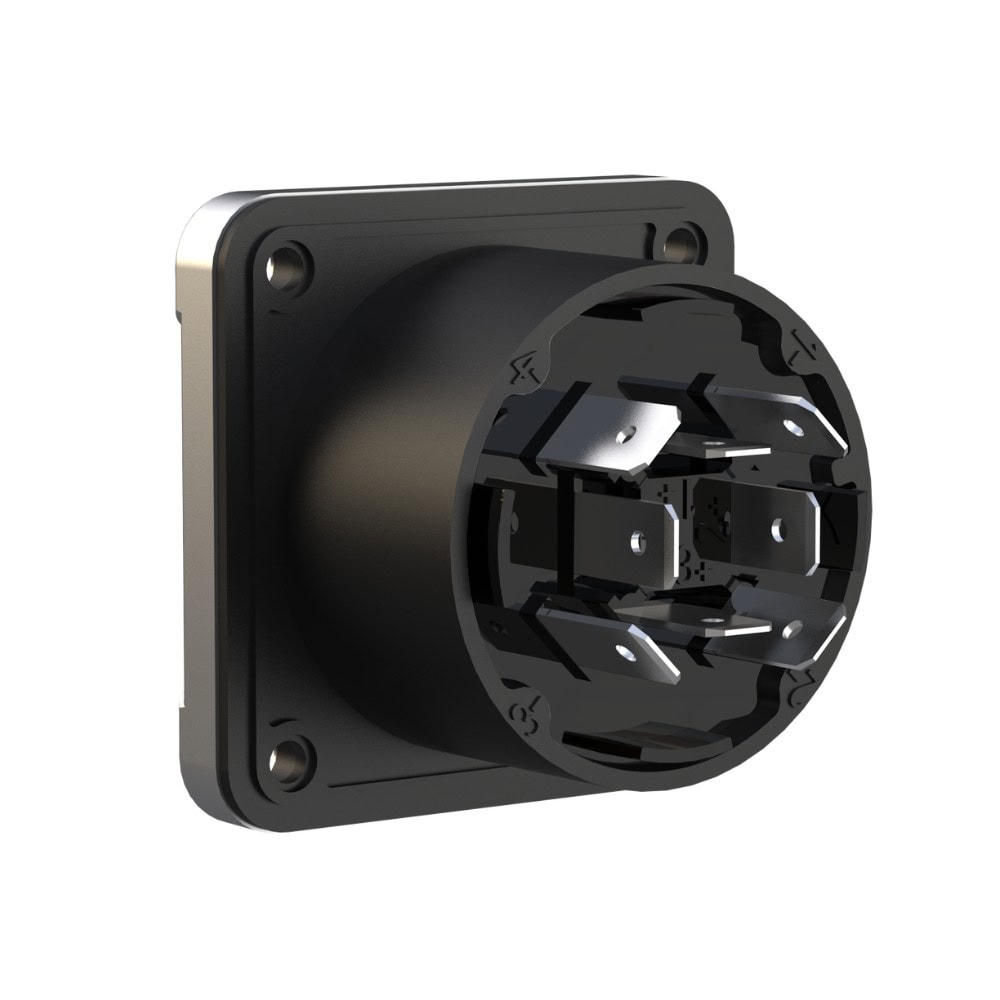

- Fast and Efficient Assembly: D type panel cut out design enables quick mounting onto standard panels; supports soldering or 4.8×0.5 terminal plug in termination for convenient field wiring.
- Secure Environmental Performance: Achieves IP65 ingress protection when mated with SEETRONIC 8 pole plug, delivering reliable dust proof and water resistant performance for harsh working environments.
- Reliable Electrical Contact: Silver plated copper alloy contacts maintain low contact resistance ≤3 mΩ to guarantee consistent high current conductivity.
Contact us
Details
| Product Parameters | |
| Connection Type | Speaker |
| Gender | Female |
| Electrical Parameters | |
| Number of Contacts | 8 |
| Rated Current | 30A rms |
| Rated Voltage | 250V AC |
| Contact Resistance | ≤ 3 mΩ |
| Dielectric Strength | 3KV DC |
| Insulation Resistance | > 500 MΩ |
| Mechanical Parameters | |
| Service life | > 5000 mating cycles |
| Material and Environmental Parameters | |
| Housing | Zinc alloy, plated with pearl nickel |
| Contacts | Cu alloy |
| Contact plating | Ag |
| Flame-retardant grade | UL 94-V0 |
| Temperature range | -30°C ~ +80°C |
| Protection degree | Matching with SEETRONIC 8 pole plug is IP65 |
Downloads
Description

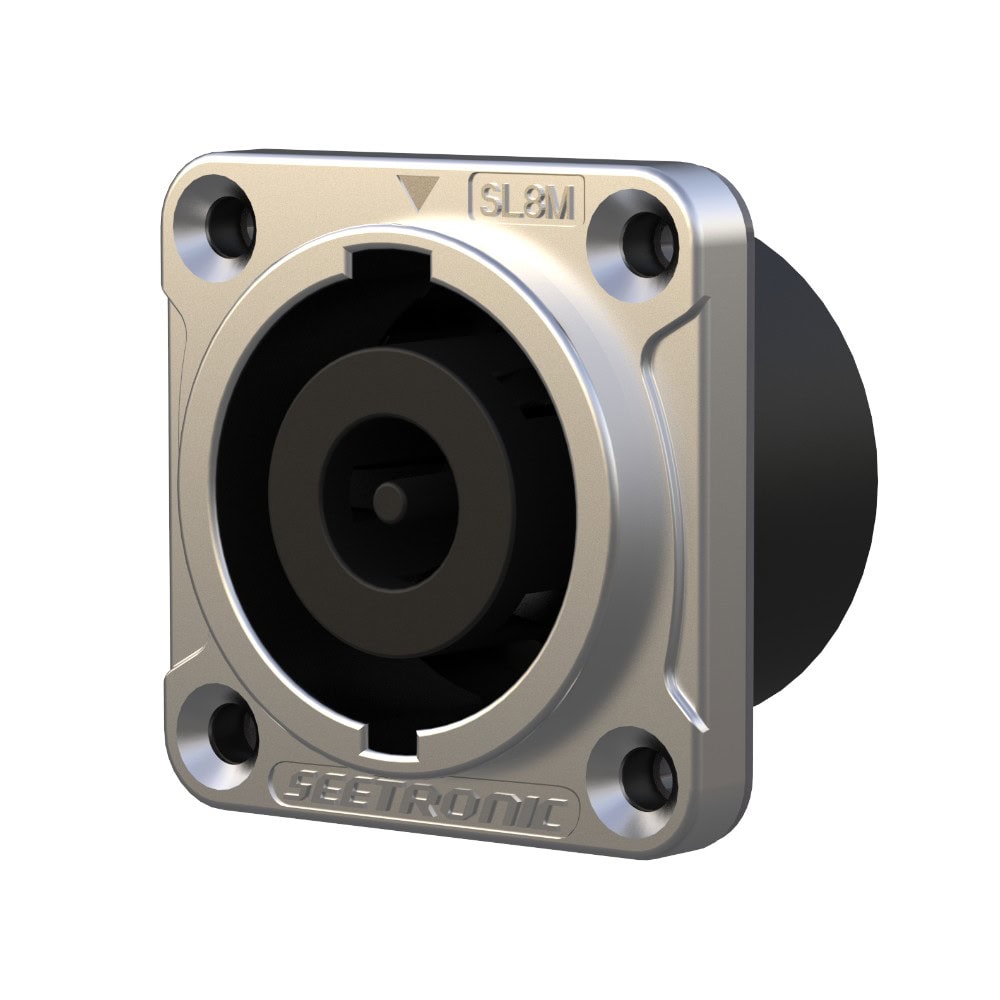

The SL8MPRXX-W is an 8 pole female panel mount speaker connector engineered for professional audio system connection and stable signal power transmission under rigorous working conditions. It adopts a black D size flange structure compatible with standard D shaped panel cut outs for easy panel installation.
Key Features
- 8 Pole Configuration: 8 contact female socket design for multi channel professional speaker connection.
- High Current Capacity: Supports 30 A rms continuous current under specified operating conditions.
- Panel Mount Convenience: Standard D size flange and D type panel cut out for simple installation with M3 screws.
- Dual Termination Options: Supports soldering or plug in with 4.8*0.5 terminals for flexible wiring.
- Enhanced Environmental Reliability: IP65 rating when mated with SEETRONIC 8 pole plug, suitable for indoor and outdoor audio equipment applications.
- Mechanical & Electrical Reliability: Silver plated contacts, low contact resistance, long life mating performance and UL 94 V0 flame retardancy ensure stable operation in complex condition installations.
Application Notes
- Professional Audio Use: Designed for loudspeaker wiring connection in professional audio systems.
- Mechanical Stability: Heavy duty zinc alloy housing and high grade contact plating maintain stable connection performance over frequent mating cycles.
- Installation Efficiency: Standard D panel mounting structure simplifies equipment panel assembly and on site maintenance.
