SO2M

Description

The SO2M Optical Fiber Plug is designed for robust and reliable electrical connections in outdoor environments. With its rugged construction and advanced features, it ensures high performance and durability. Perfect for applications requiring secure and efficient data transmission, the SO2M plug is an ideal choice for a variety of industrial and commercial uses.

Key Features:

• Durable Design: Constructed with a rugged metal housing that provides protection against harsh environmental conditions.
• Push-Pull Locking Mechanism: The reliable locking mechanism ensures a secure connection, minimizing the risk of accidental disconnects.
• IP65 Protection Rating: Designed for outdoor use, the plug is protected against dust and water ingress, making it suitable for various external applications.

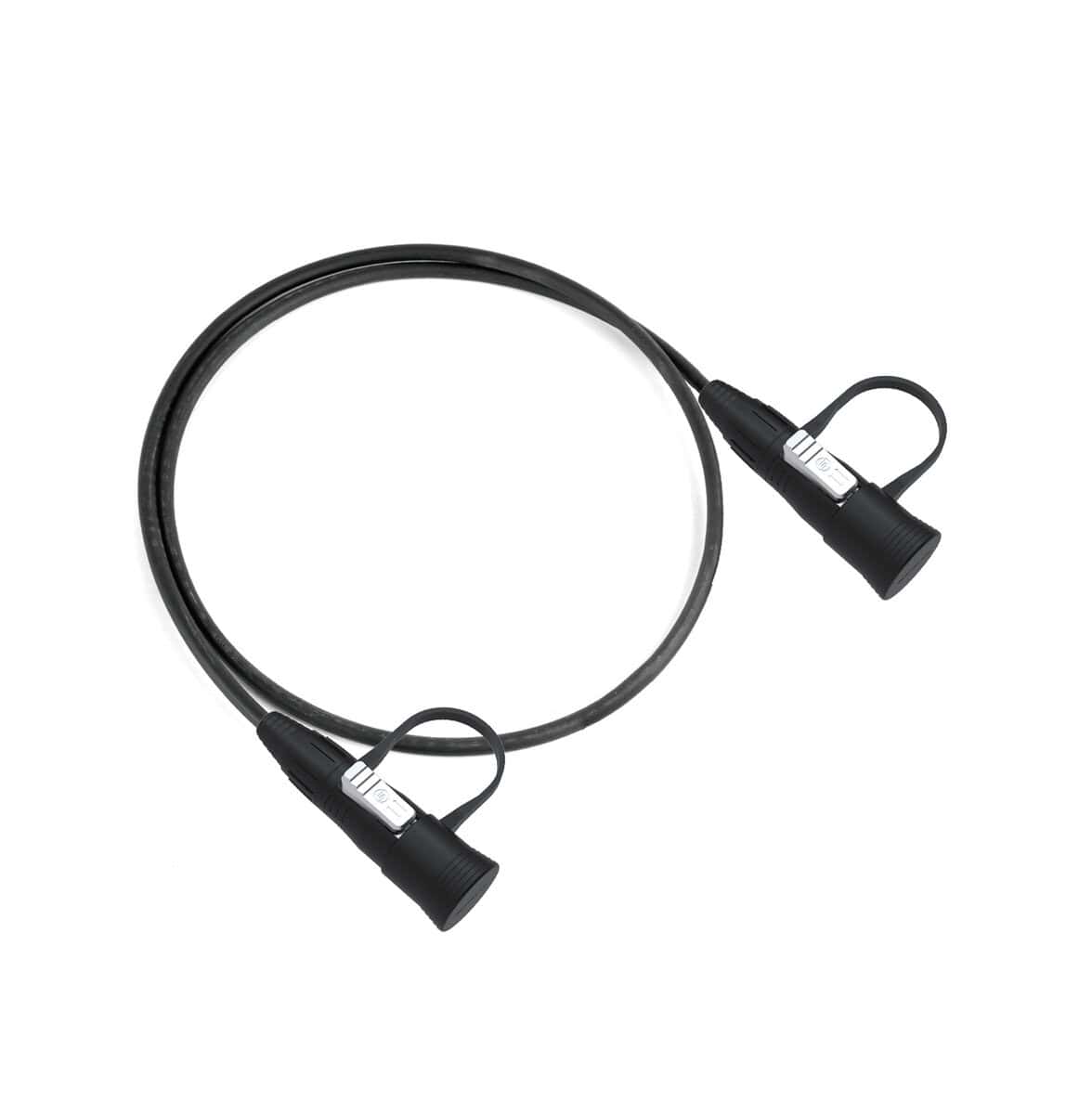

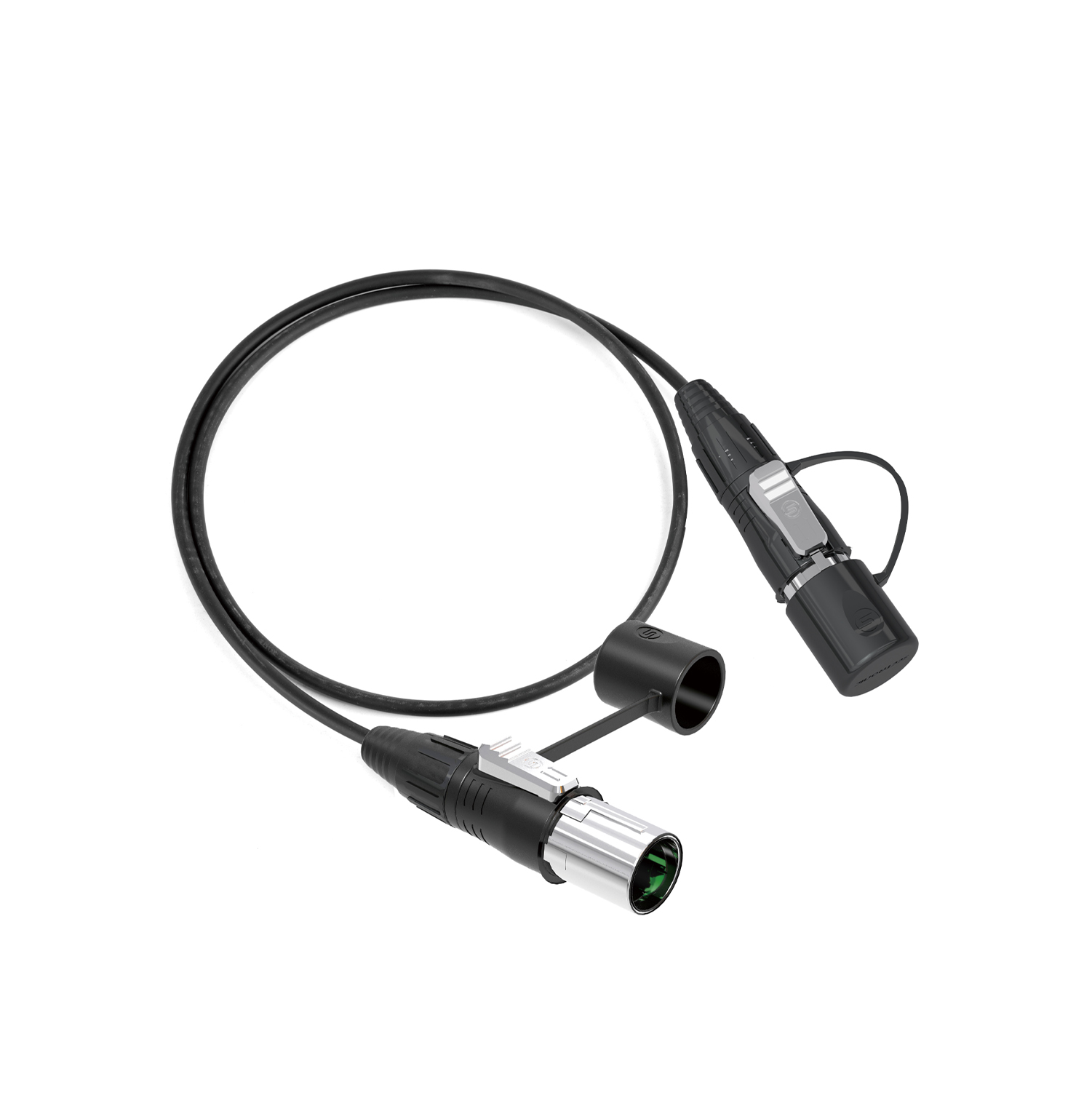

• Pre-assembled with Fiber Cable: The SO2M comes pre-assembled with fiber cables (available in single-mode and multi-mode) for immediate use, ensuring ease of installation.
• Optional 4-Core Signal Pin: Flexibility to meet different communication requirements with an optional 4-core signal pin configuration.

Specifications:

• Product Type: Optical Fiber Plug
• Model: SO2M
• Connection Type: Optical Fiber
• Gender: Male

Mechanical Parameters:

• Service Life: > 5000 mating cycles
• Insertion Force: < 45 N
• Locking Device: Push-Pull

Material and Environmental Parameters:

• Housing Material: PA (Polyamide)
• Push-button Material: Zinc Diecast
• Tube Material: SUS (Stainless Steel)
• Insert Material: PA (Polyamide)
• Protective Cover Material: Silicon Rubber
• Temperature Range: -40 °C to +75 °C

Fiber Optic Cable Parameters:

• Insertion Loss:
  • Single-Mode (SM) 100M: < 0.45 dB/connection
  • Multi-Mode (MM) 100M: < 0.65 dB/connection
• Optical Connector: LC-Duplex (PC or APC)
• Cable Wiring Standards: ISO/IEC 11801
• Cable Color: Black
• Fiber Diameter:
  • Single-Mode: 9 μm
  • Multi-Mode: 50 μm
• Cladding Diameter: 125 μm
• Outer Jacket Material: TPU (Thermoplastic Polyurethane)
• Minimum Bending Radius: 5 cm
• Number of Fibers: 2
• Weight: 30 kg/km
• Cable Diameter: 5 mm

Packaging and Accessories:

• The SO2M plug is provided pre-assembled with fiber cable and is not available as a separate connector.
• No accessories included, with options for accessory packages available.

The SO2M Optical Fiber Plug combines durability, reliability, and ease of use, making it the perfect solution for outdoor fiber optic applications. Whether for telecommunications, data centers, or industrial networks, the SO2M ensures high-quality performance and long-lasting connectivity.
